MAN B&W 11.02
Page 1 of 1
MAN Diesel
MAN B&W MC/MCC, ME/MEC/MEGI/ME-B engines 198 40 579.5
Central Cooling Water System

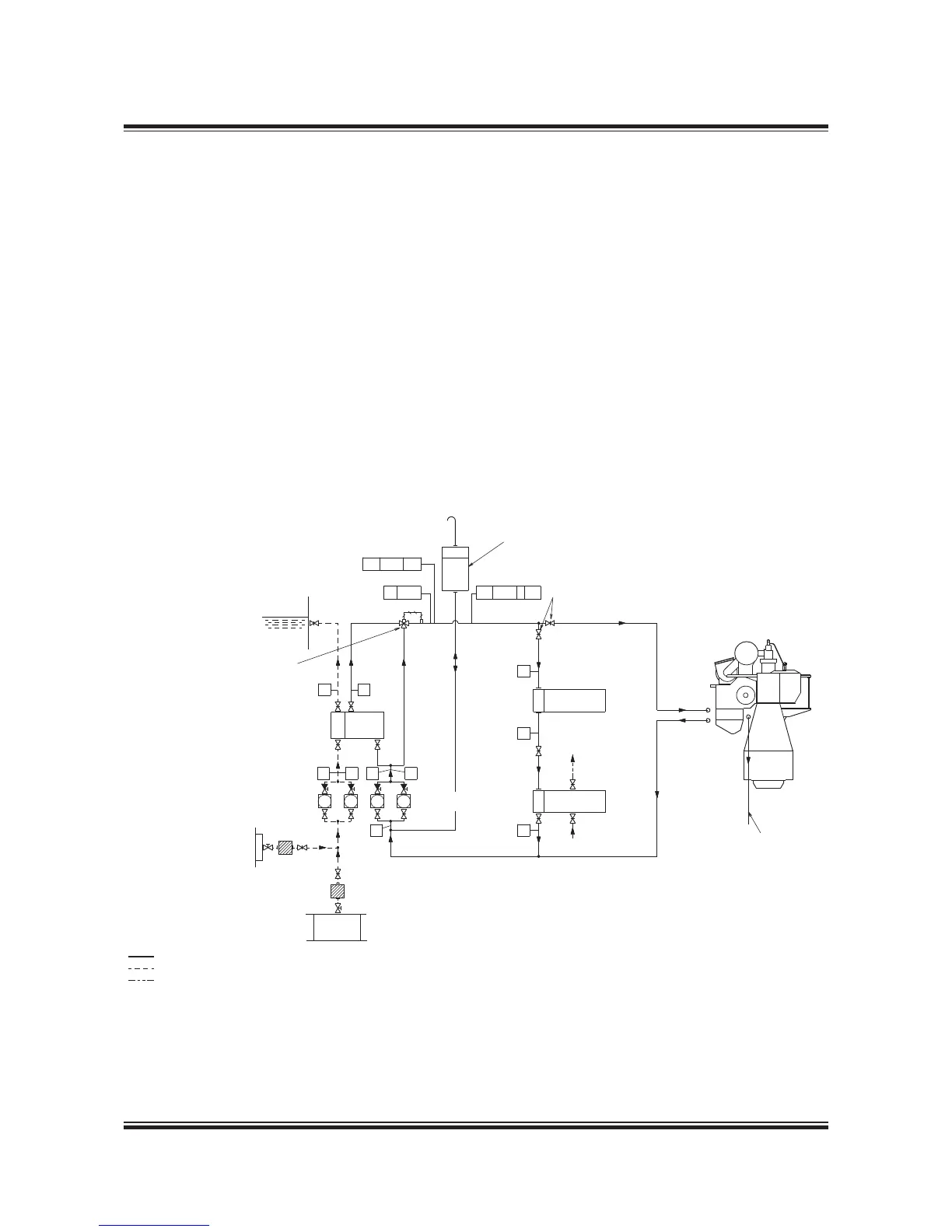

Fig. 11.02.01: Central cooling water system
The central cooling water system is characterised
by having only one heat exchanger cooled by
seawater, and by the other coolers, including the
jacket water cooler, being cooled by central cool-
ing water.
In order to prevent too high a scavenge air tem-
perature, the cooling water design temperature
in the central cooling water system is normally 36
°C, corresponding to a maximum seawater tem-
perature of 32 °C.
Our recommendation of keeping the cooling water
inlet temperature to the main engine scavenge
air cooler as low as possible also applies to the
central cooling system. This means that the tem-
perature control valve in the central cooling water
circuit is to be set to minimum 10 °C, whereby the
temperature follows the outboard seawater tem-
perature when central cooling water temperature
exceeds 10 °C.
For external pipe connections, we prescribe the
following maximum water velocities:
Jacket water ................................................ 3.0 m/s
Central cooling water .................................. 3.0 m/s
Seawater ..................................................... 3.0 m/s
178 52 771.1
4)
4) 4)
4)
4)
4)
0) 0)
0)
4)
3EAWATER
OUTLET
#ENTRAL
COOLER
3EAWATER
PUMPS
#ENTRALæCOOLING
WATERæPUMPS
%XPANSIONæTANK
CENTRALæCOOLINGæWATER
4HESEæVALVESæTOæBEæPROVIDED
WITHæGRADUATEDæSCALE
,UBRICATINGæ
OILæCOOLER
*ACKETæWATER
COOLER
.
0
!3
-AIN
ENGINE
#OOLINGæWATER
DRAINæAIRæCOOLER
2EGARDINGæTHEæLUBRICATINGæOILæCOOLERS
THISæVALVEæSHOULDæBEæADJUSTEDæSOæTHAT
THEæINLETæTEMPERATUREæOFæTHEæCOOLING
WATERæISæNOTæBELOWææª#
!IRæPOCKETSæIFæANYæINæTHEæPIPEæLINEæ
BETWEENæTHEæPUMPSæMUSTæBEæVENTEDæ
TOæTHEæEXPANSIONæTANK
3EAWATER
INLET
3EAWATER
INLET
*ACKETæCOOLINGæWATER
3EAæWATER
&UELæOIL
4HEæLETTERSæREFERæTOæLISTæOFæ@#OUNTERFLANGESæ&IGææ
04ææææ!,
4%ææææ)ææ!,4)ææ
4HEæITEMæ.OæREFERæTOæ@'UIDANCEæVALUESæAUTOMATION
