MAN B&W 19.03
Page 2 of 2
MAN Diesel
MAN B&W S42MC, S35MC, L35MC
198 65 47-9.1

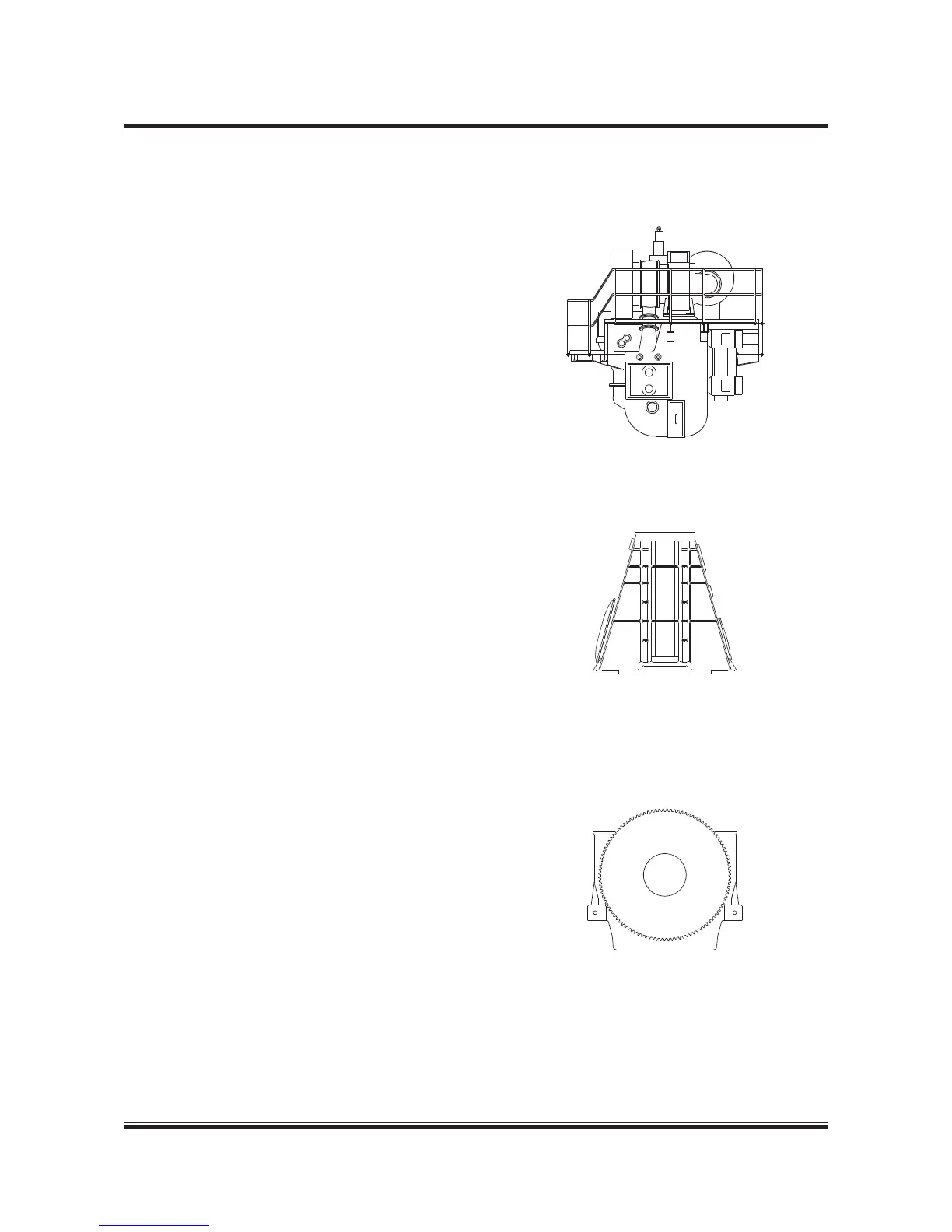

Fig. 19.03.01b: Dispatch pattern, engine with turbocharger on exhaust side (4 59 123)
074 24 01-7.0b
A3 + B3 (option 4 12 023 + 4 12 033)
Top section including cylinder frame complete, •
cylinder covers complete, scavenge air receiver
including cooler box and cooler insert, turbo-
charger, camshaft, piston rods complete and
galleries with pipes.
Frame box section including frame box com-•
plete, chain drive connecting rods.
Bedplate/crankshaft section including bedplate •
complete, crankshaft complete with wheels and
turning gear.
Remaining parts, stay bolts, chains, etc.•
Note!
The engine supplier is responsible for the neces-
sary lifting tools and lifting instructions for trans-
portation purpose to the yard.
The delivery extent of tools, ownership and
lending/lease conditions are to be stated in the
contract. Furthermore, it must be stated whether a
dehumidier is to be installed during the transpor-
tation and/or storage period.
