MAN B&W 19.10
Page 4 of 10
MAN Diesel
MAN B&W L35MC6 198 77 88-1.0

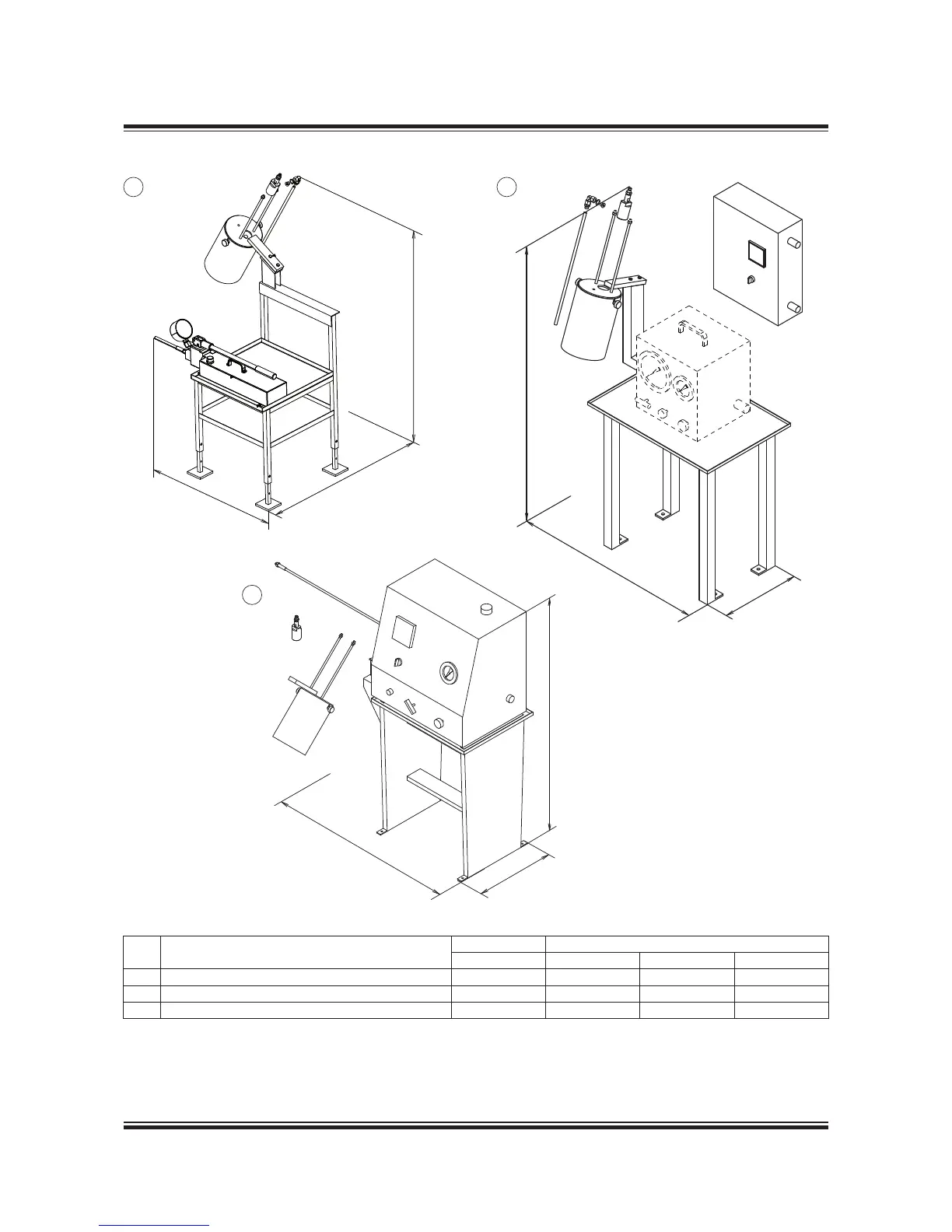

Fig. 19.10.03: Dimensions and masses of tools
Pos. Description
Mass Dimensions (mm)
(kg) A B C
1 Test rig for fuel valve, hand operated 50 561 656 1,550
2 Test rig for fuel valve, separated hydraulic pump 70 1,025 420 1,630
3 Test rig for fuel valve, integrated hydraulic pump 120 940 520 1,540
All measurements are for guidance only
508 83 09-8.0.0
316 79 10-8.3.0
13 64 08-7.0.0
A
B
C
A
B
C
A
B
C
Control box
1 2
3
