MAN B&W 19.10
Page 5 of 10
MAN Diesel
MAN B&W L35MC6 198 77 88-1.0
504 59 65-3.1.0
Pos. Description
1 Air cooler cleaning tool
2 Compensator, dismantling tool
3 Blanking plate

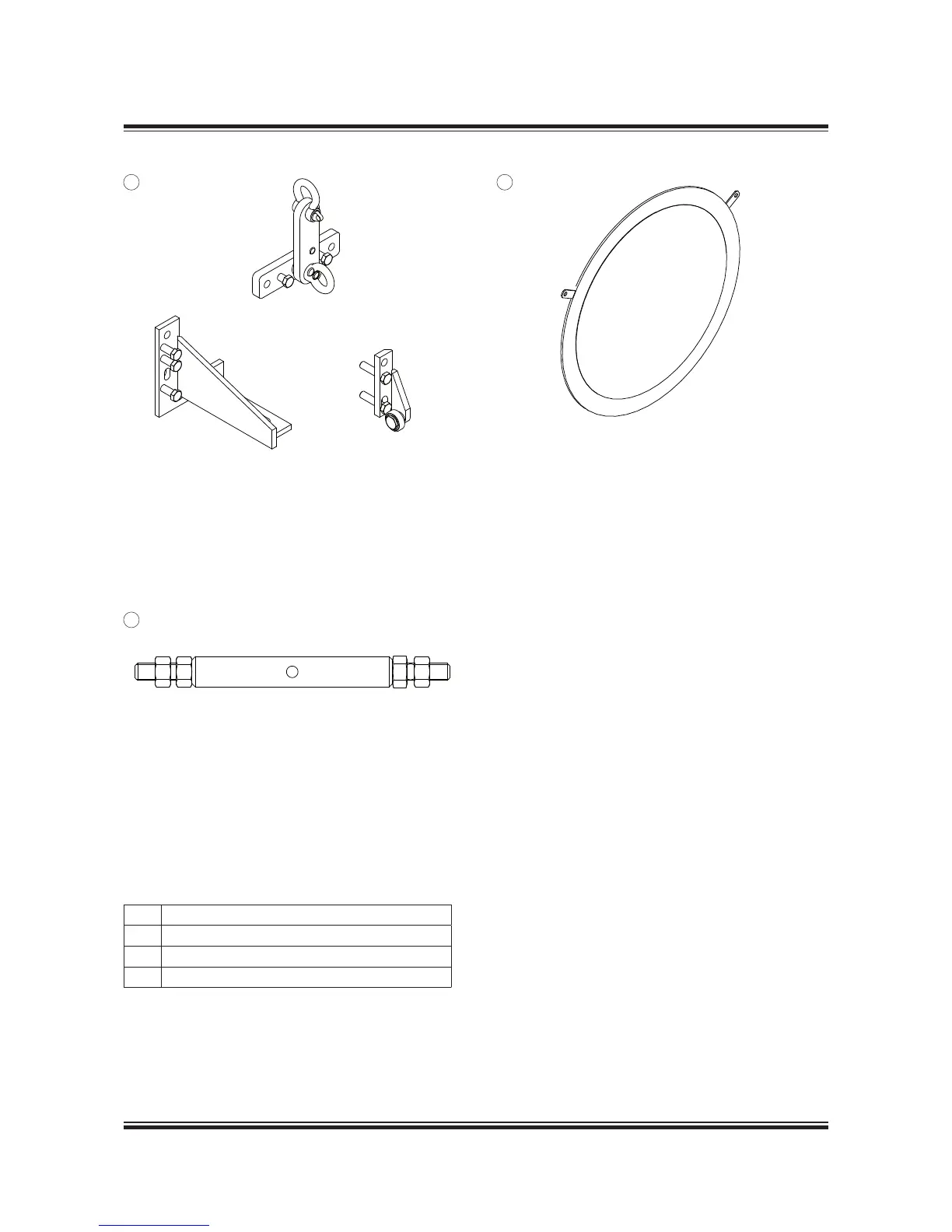

Fig. 19.10.04: Dimensions and masses of tools
310 20 96-6.1.0
504 59 85-6.1.0
2
1 3
The tools for air cooler, compensator and the tools for the
turbocharger system are to be stored in a storage room e.g.
a drawer.
Required space for these tools are approx.:
1,000 × 500 × 300 mm.
Dimensions varies depending on compensator size.
Depending on the turbocharger type choosen for the engine,
the blanking plates will vary in size from approx. 380 mm in
up to 1,180 mm in diameter.
Thickness: 10 to 16 mm.
Only engines with two or more turbochargers will be supplied
with blanking plates.
