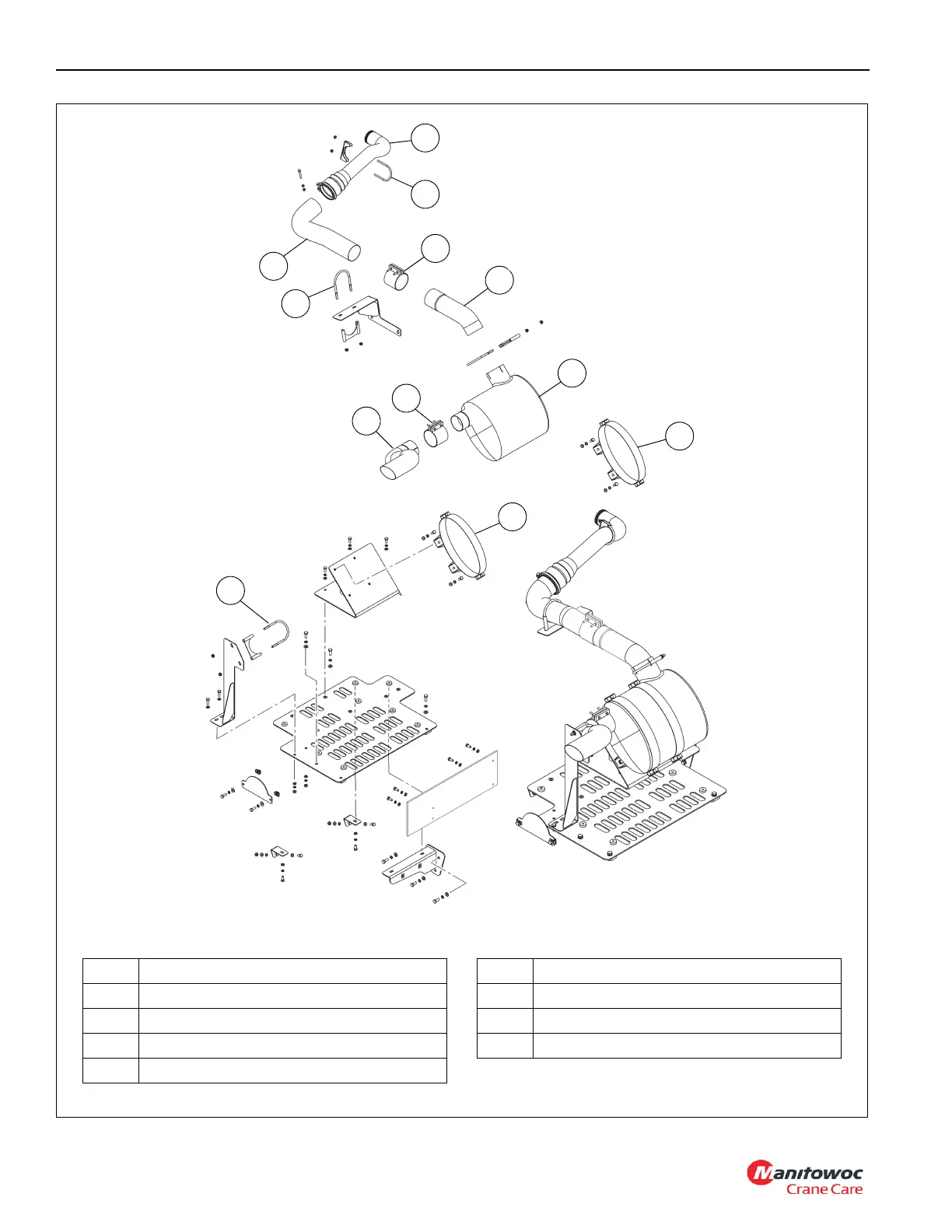

Exhaust System - Tier 3
FIGURE 7-13
1 Exhaust Tube Weldment
2 Muffler Clamp
3 Downpipe Tube
4 Muffler Clamp
5Clamp
6 Downpipe Tube
7 Muffler
8 Tailpipe Tube
9 Mounting Band
9
7
1
2
3
5
4
8
6
4
5
9
