GRT8100 SERVICE MANUAL POWER TRAIN
7
Published 3/26/2018, Control # 596-05
GROVE

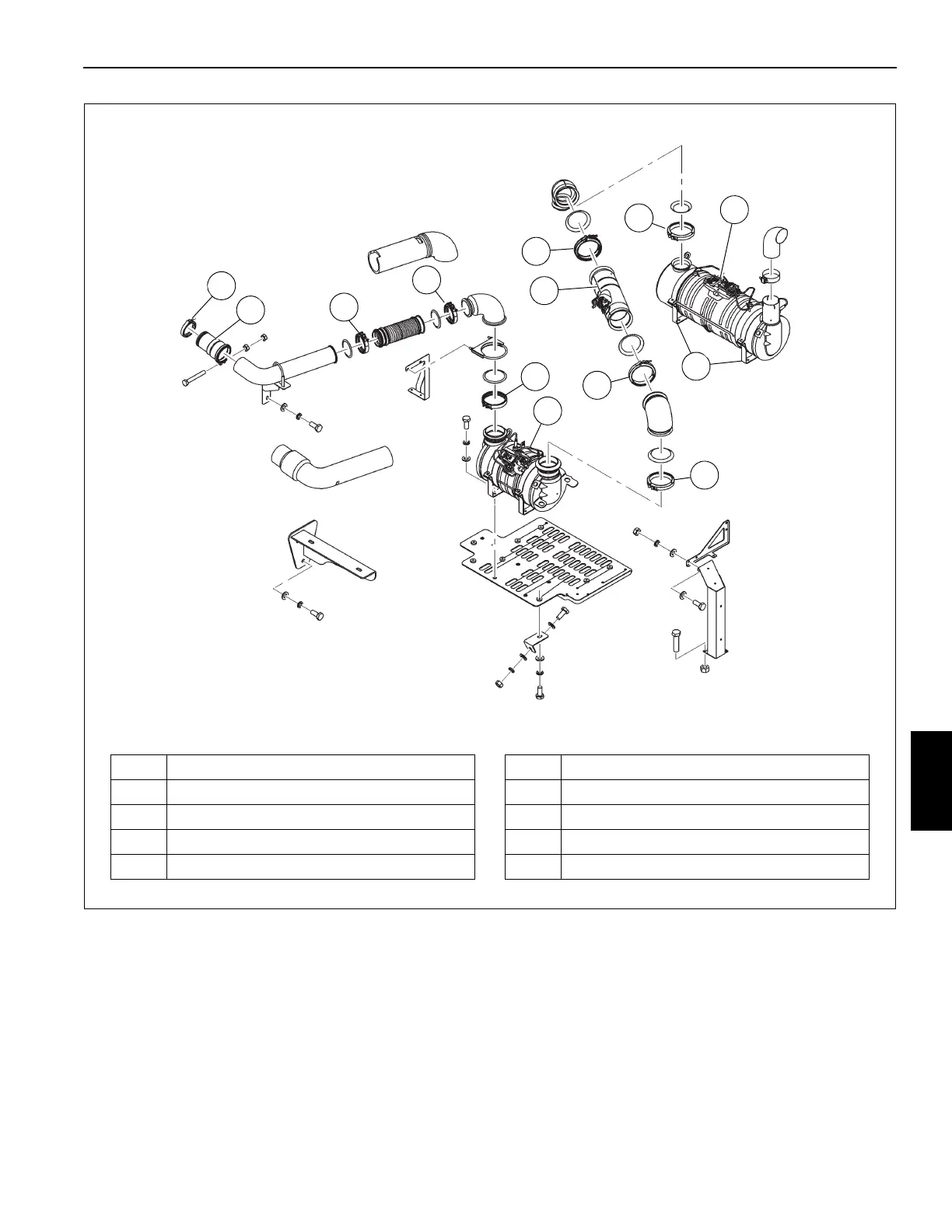

FIGURE 7-14
9
7
8804-111
1
2
3
3
5
4
6
6
8
1 V-band Clamp
2 Slip Joint
3 V-band Clamp
4 V-band Clamp
5 Oxidation Catalyst
6 V-band Clamp
7 Decomp Reactor Tube
8 V-band Clamp
9 Selective Catalytic Reduction (SCR) Device
10 Mounting Bands
6
10
Exhaust System - Tier 4
