HYDRAULIC SYSTEM GRT9165 SERVICE MANUAL
2-58
Published 10-01-2020 Control # 699-00

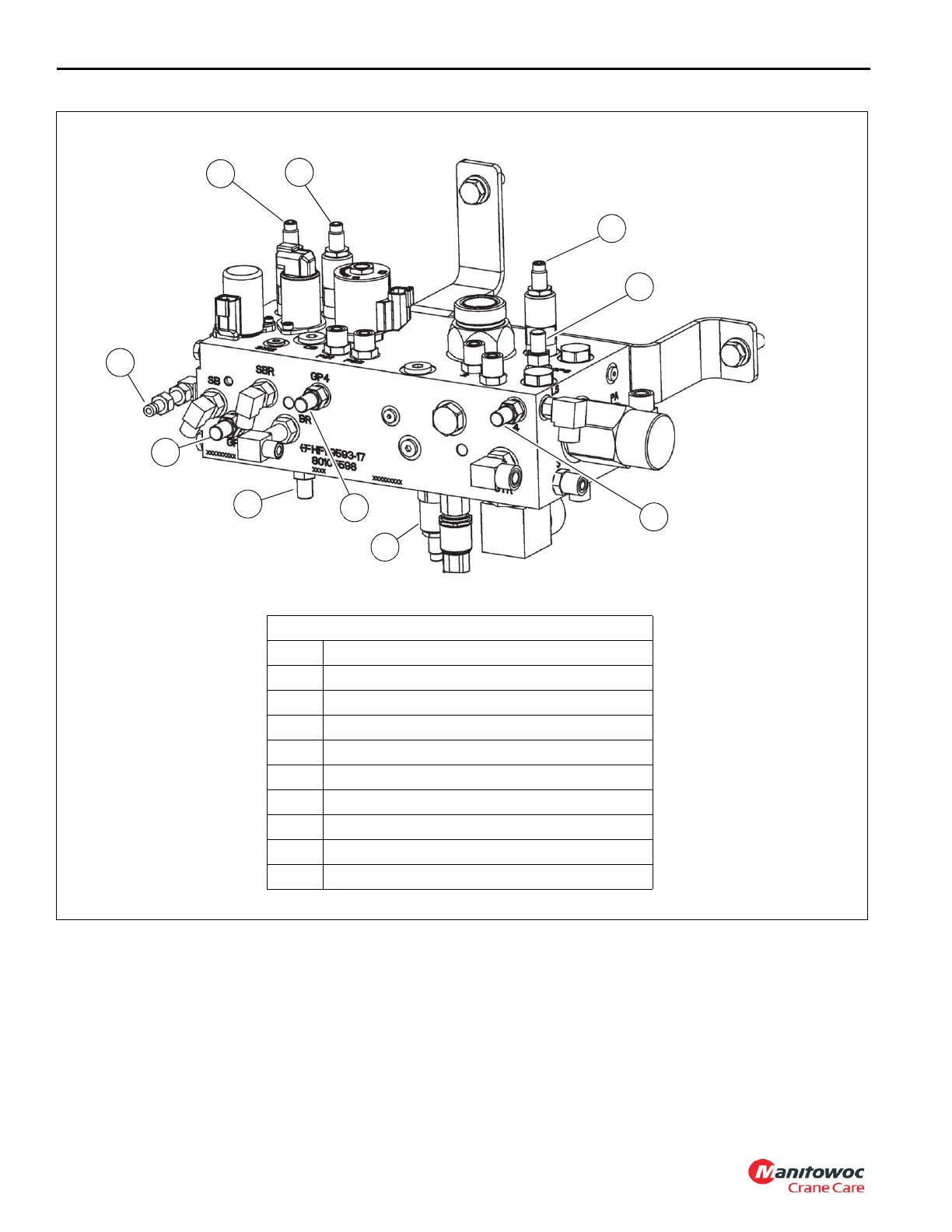

Accessory Manifold
1GP1 Port
2 Swing Brake Pressure Reducing Valve
3 Pilot Supply Pressure Reducing Valve
4 Accessory Pressure Reducing Valve
5GP6 Port
6 Port 4 Load Sense
7 Steer Priority Relief Valve
8GP4 Port
9GP5 Port
10 GP3 Port
FIGURE 2-27
2
1
6
4
10139
3
9
7
10
8
5
