INTRODUCTION GRT9165 SERVICE MANUAL
1-8
Published 10-01-2020 Control # 699-00

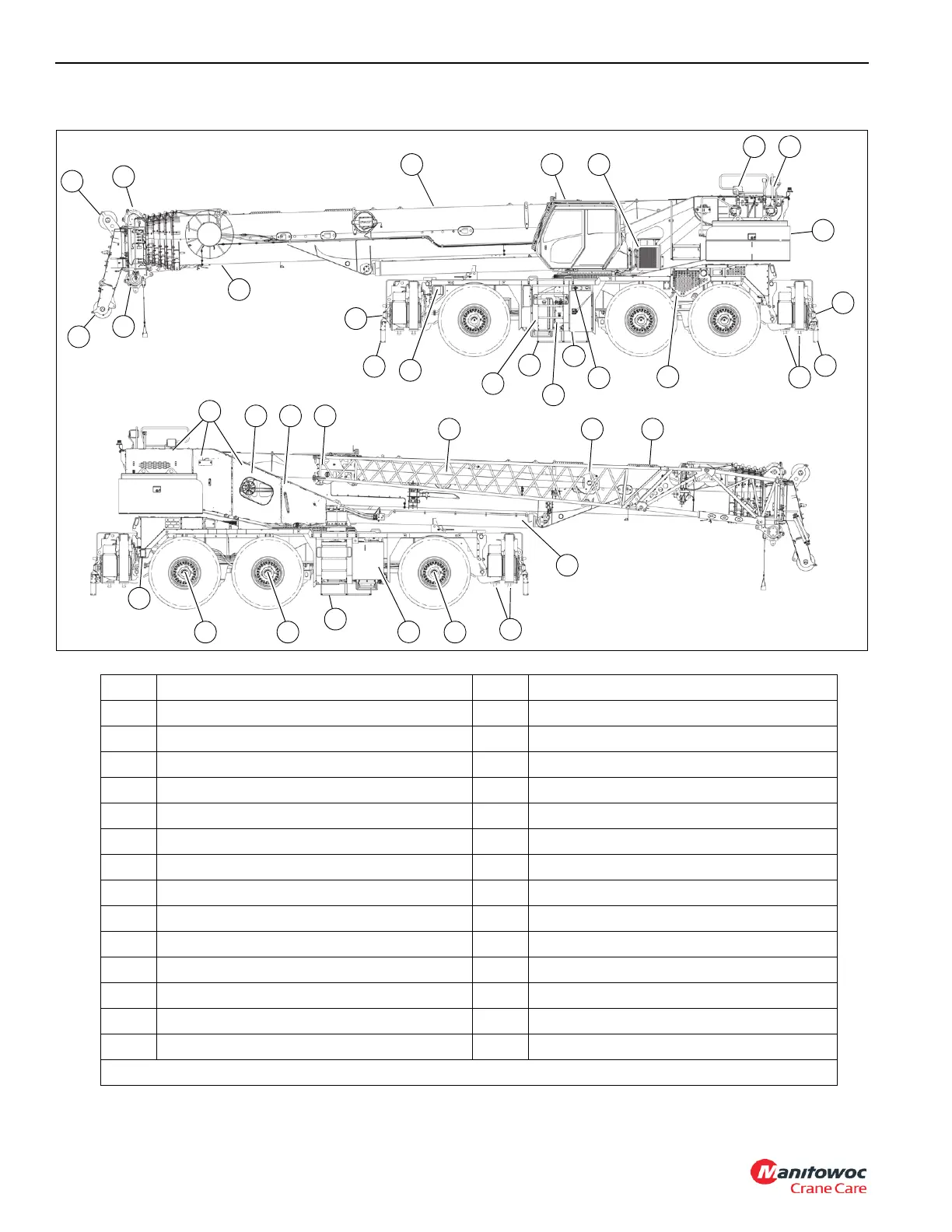

GRT9165 CRANE COMPONENTS
Item Description Item Description
1
Auxiliary Boom Nose Sheaves
15 Diesel Exhaust Fluid (DEF) Tank*
2 Boom Nose Sheaves 16 Fuel Tank*
3 Boom 17 Outrigger Box Pinning Control
4 Cab 18 Boom Work Lights
5 Air Conditioning Condenser 19 Superstructure Valve Covers
6 Main Hoist 20 Hydraulic Oil Cooler
7 Auxiliary Hoist 21 Boom Extension Sheaves
8 Counterweight 22 Boom Extension Fly Section
9 Outrigger Pads 23 Boom Extension Base Section
10 Crane Steps and Grab Handles 24 Lift Cylinder
11 Outrigger Jack Cylinders 25 Hydraulic Tank
12 Exhaust Aftertreatment 26 Axle #1 (Front Drive and Steer)
13 Battery Disconnect Switch 27 Axle #2 (Steer only)
14 Battery and Control Module Compartment 28 Axle #3 (Rear Drive and Steer)
*Stage V/Tier 4F engines use Ultra Low Sulfur Fuel (Max 15 ppm) and Diesel Exhaust Fluid (DEF)
FIGURE 1-2
2
10
3 5
6
1
8
7
11
12
15
13
10
10
16
17
1
9
9
21 23
21
22
1920
24
10
262728
25
19
17
14
11
9903-01
9903-02
2
4
18
