GRT9165 SERVICE MANUAL ELECTRICAL SYSTEM
3
GROVE
10155
3
1
2
4
5
6
7
8
9
10
11
12
13
14
16
17
20
23
21
22
18
24
20

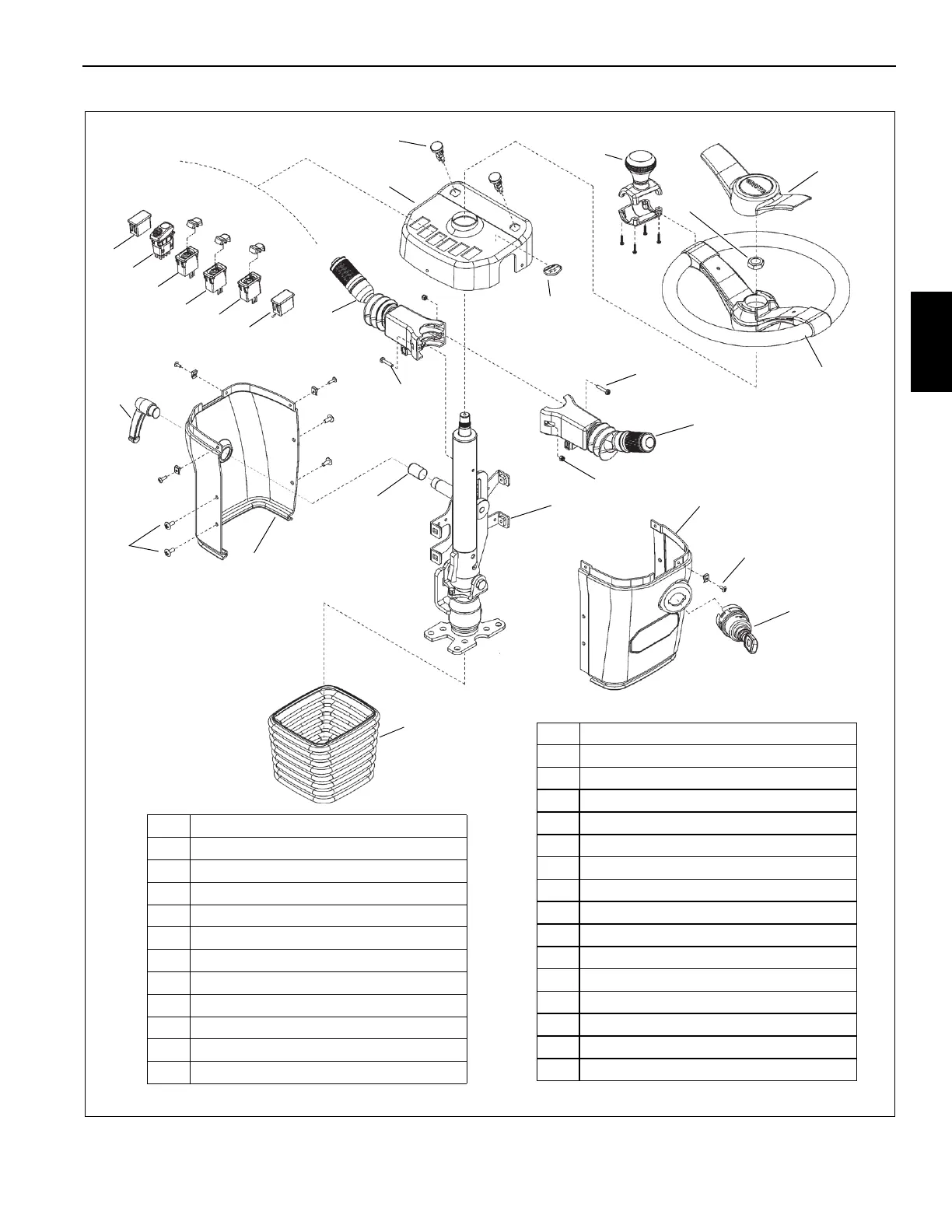

FIGURE 3-11
15
19
25
26
Item Component
1 Dashboard Cover
2 Turn Signal Indicator
3 Steering Wheel Cap
4 Steering Wheel Nut
5 Steering Wheel
6Screw
7 Three-Speed Transmission Shift Switch
8 Locknut
9 Column Assembly
10
Right Side Cover
11 M4 Button Head Screw
12 Ignition Key Switch Assembly
13 Spacer
14 M6 Button Head Screw
15 Lock Handle
16 Left Side Cover
17 Steering Column Tilt and Telescope
18 Turn Signal, Lights, Wiper Switch
19 Knob
20 Switch Blank
21 Hazard On/Off Switch
22 2WD/4WD Switch
23 Headlight Switch
24 Parking Brake Switch Assembly
25 Billows
26 F-N-R Label
Item Component
