GRT9165 SERVICE MANUAL HOIST AND COUNTERWEIGHT
5
Published 10-01-2020 Control # 699-00
GROVE
4
13
21
23
15
29
19
14
1Hoist
2
Cotter Pin
3
O-Ring
4
Cable Wedge
5 Limit Switch Assembly
6 Motor
7 Shaft
8 Bearing Support
9 Motor Control Valve
10 Shaft
11 Hoist Roller
12 Spring Pin
13 Capscrew M6x16 SS
14 Capscrew M12x45 8.8
15 Capscrew M12x35 10.9
16 Capscrew M20x40 10.9
17 Straight Thread Adapter
18 Lock Pin
19 Flat Washer
20 Flat Washer
21 Narrow Flat Washer
22 O-Ring
23 Lockwasher
24 Sight Glass
25 SHCS M6x45 8.8
26 Washer
27 Lockwasher
28 Nut
29 Standoff Fitting
30 Cotter Pin
31 Capscrew M12x12 SS

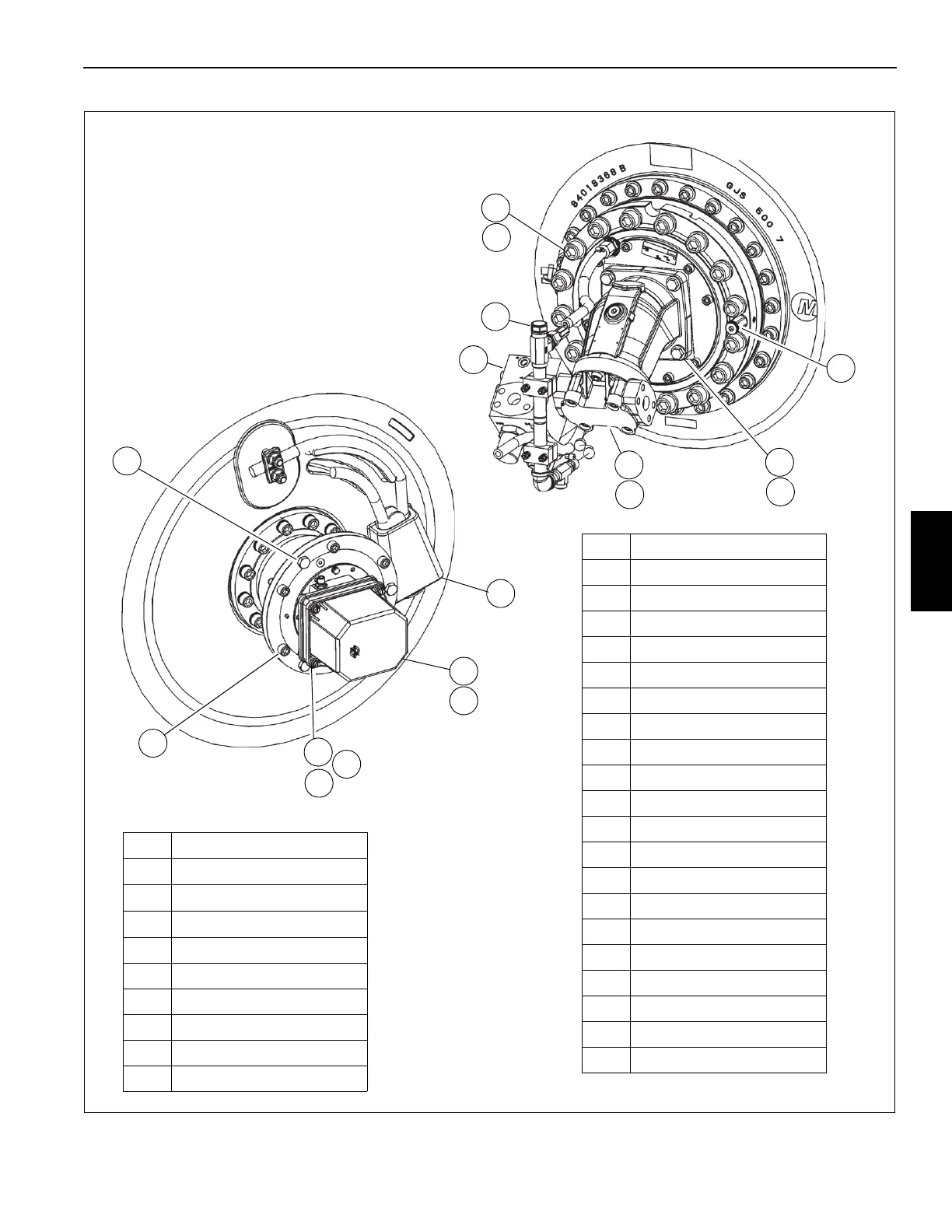

FIGURE 5-1 continued
6
22
16
14
24
9
3
5
31
10164
10165
