Manitowoc Grove GRT9165

6-3
Published 10-01-2020 Control # 699-00
GRT9165 SERVICE MANUAL SWING SYSTEM
6
GROVE

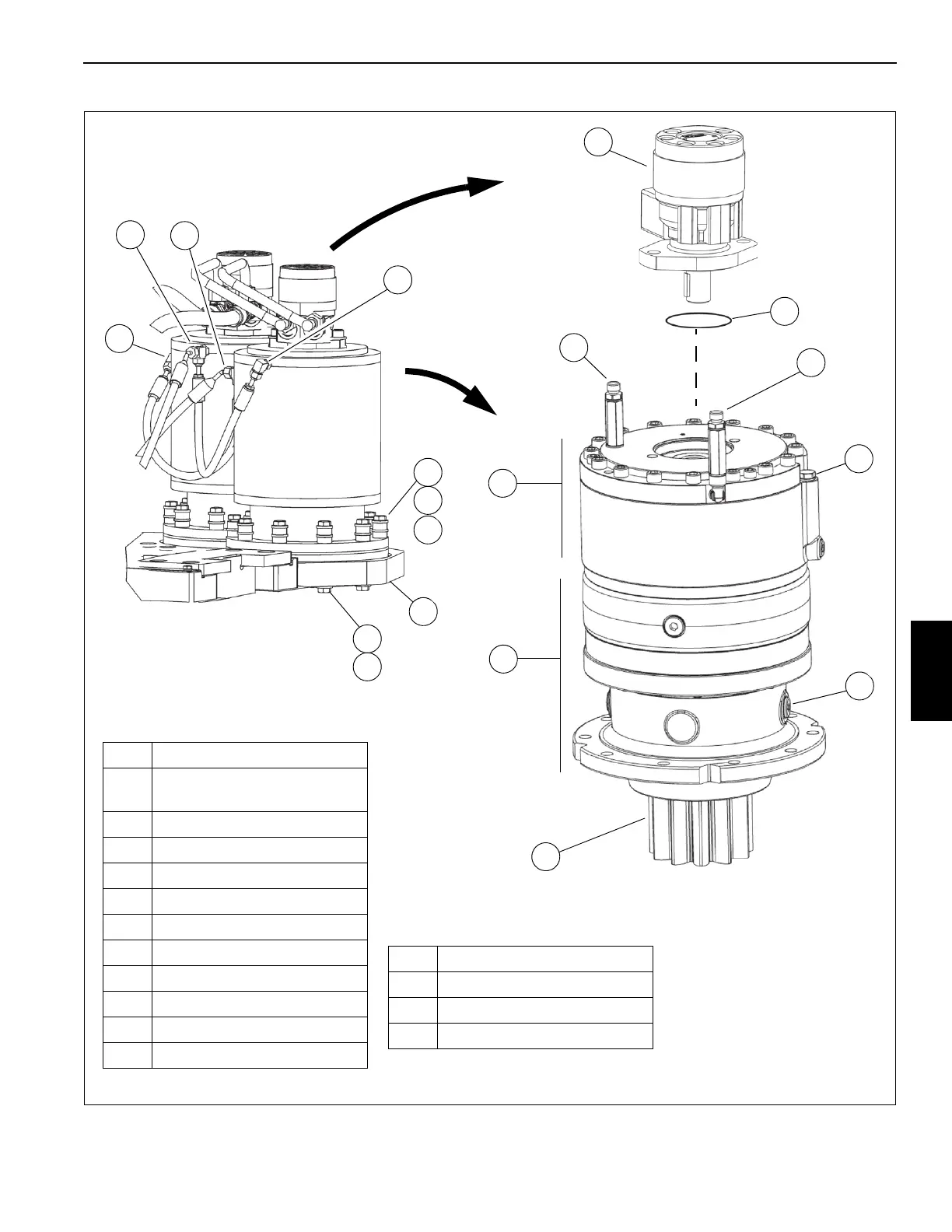

FIGURE 6-1
10170
1
2
9
6
7
1
8
4
5
4
5
Parts Removed for Clarity
10169
10168
3
10
11
12
13
14
15
1 Breather Plug
2
Level and Fill Plug and
Dipstick
3 Swing Brake
4 Hydraulic Apply Brake Port
5 Hydraulic Release Brake Port
6 Motor
7 Pinion
8 Drain Plug
9 Swing Gearbox
10 Pinion Guard
11 Capscrew
12 Washer
13 Capscrew
14 Washer
15 Bushing
16 O-ring
16
