6-14
Published 10-01-2020 Control # 699-00
SWING SYSTEM GRT9165 SERVICE MANUAL

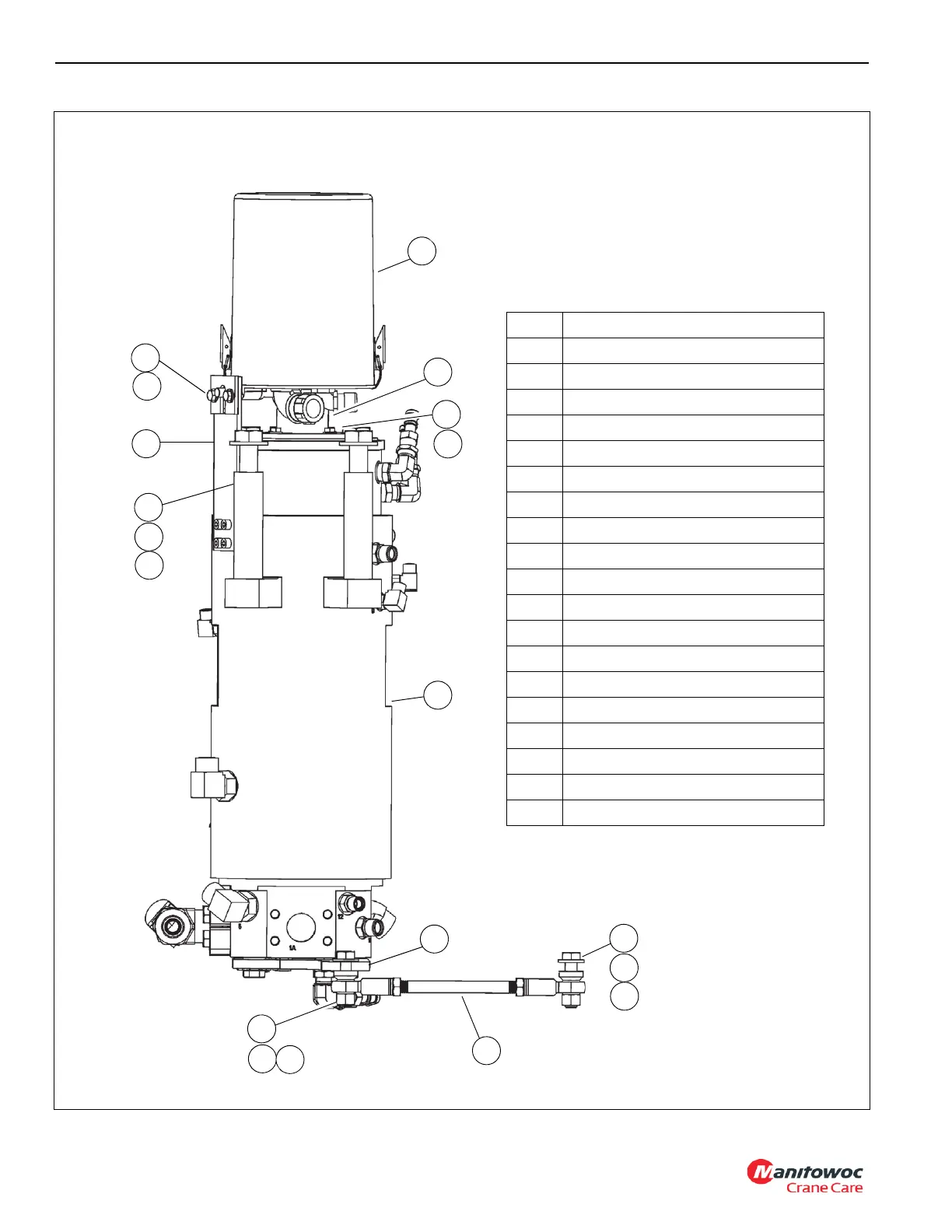

FIGURE 6-6
10173
Item Description
1 20 Conductor Slip Ring Assembly
2Center Post
3 Capscrew
4 Flatwasher
5 Swivel Assembly
6 Retainer Plate
7 Capscrew
8 Flat Washer
9Plate
10 Swivel Linkage Assembly
11 Capscrew
12 Washer
13 Locknut
14 Capscrew
15 Washer
16 Locknut
17 Capscrew
18 Washer
19 Bushing
8
1
7
9
5
2
4
3
9
10
11
13
12
14
15
16
17
19
18
