Manitowoc Grove GRT9165

UNDERCARRIAGE GRT9165 SERVICE MANUAL
8-2
Published 10-01-2020 Control # 699-00
The front and rear wheels feature a disc type hydraulic
braking system. A disc-type parking brake is mounted on the
front axle input shaft.
1
2
3
4
4
4
5

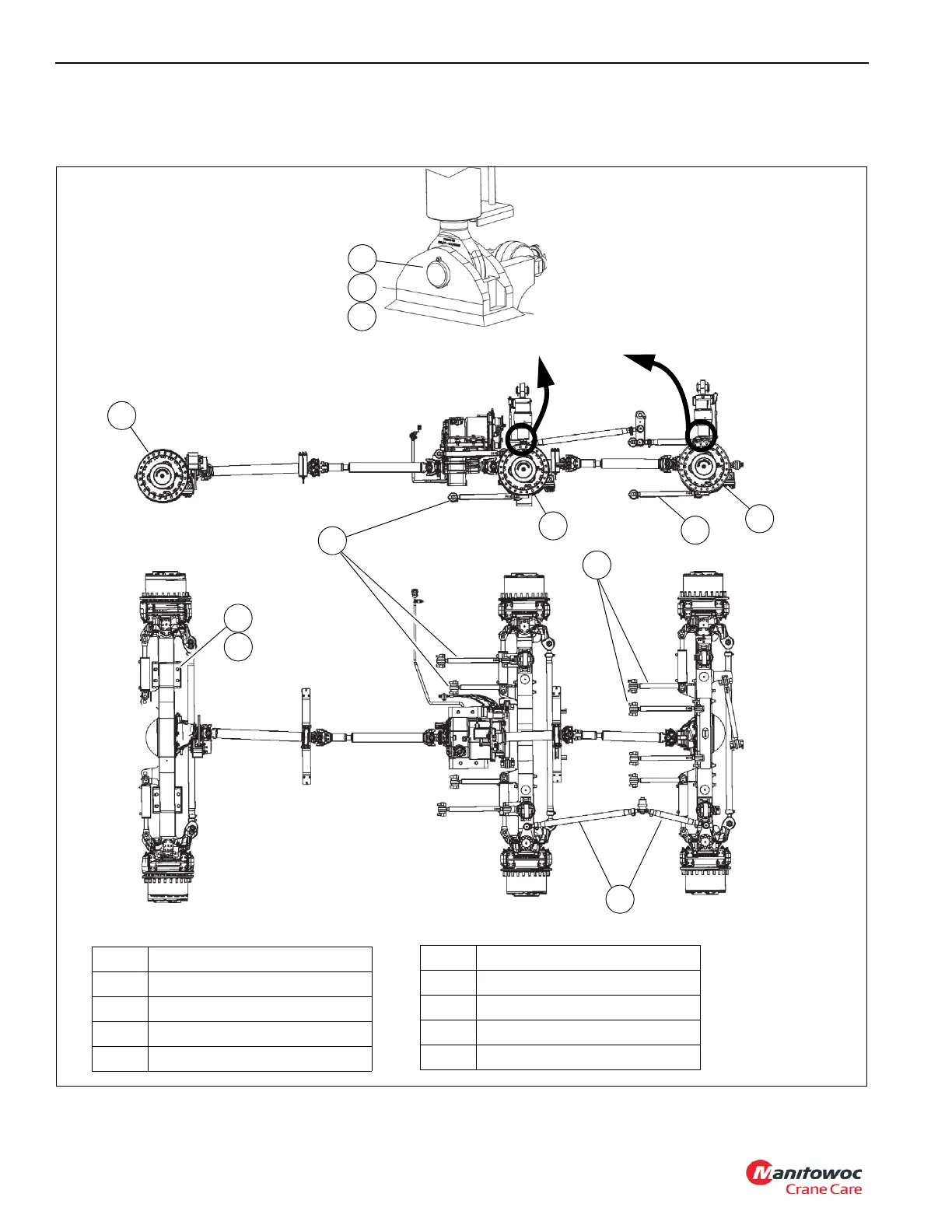

1 Front Axle Assembly
2 Middle Axle Assembly
3 Rear Axle Assembly
4 Torque Rod
5 Drag Link Assembly
6Cotter Pin
7 Spacer
8 Suspension Pin
9Washer
10 Capscrew 1-1/4-7 UNC x 13 G8
FIGURE 8-3
6
7
8
9
10
10217
10218
10219
