2-9
GROVE
GRT9165 SERVICE MANUAL HYDRAULIC SYSTEM
2
Published 10-01-2020 Control # 699-00

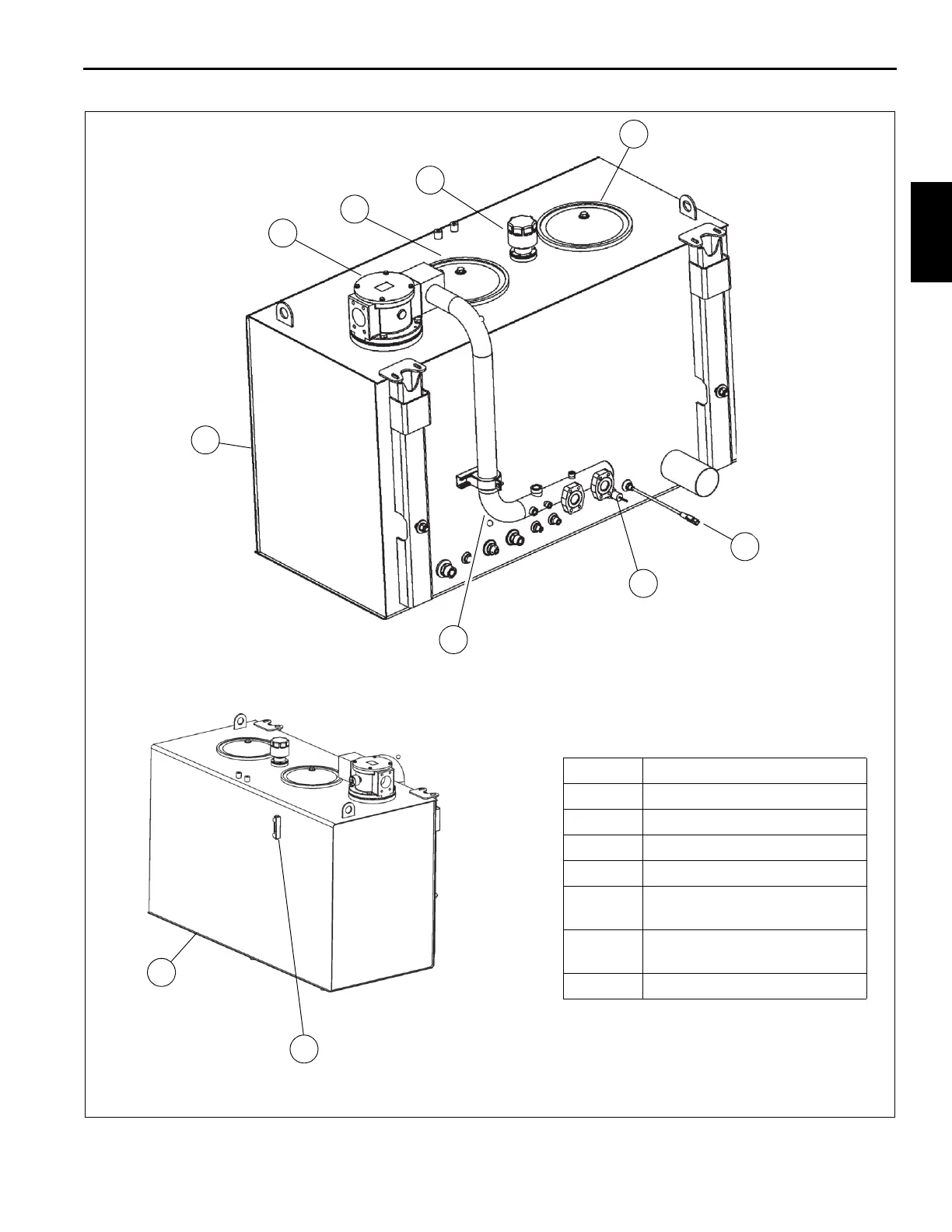

FIGURE 2-1
10091
1 Return Hose
2 Return Filter
3 Cover
4 Fill Cap/Breather
5 Hydraulic Tank
6
Thermistor (200°F) - High Oil
Temp. Indicator Light
7
Temperature Switch (190°F) -
Oil Cooler Fan On/Off
8 Oil Level Gauge
10092
2
3
4
6
7
8
5
3
5
1
