2-13
GROVE
GRT9165 SERVICE MANUAL HYDRAULIC SYSTEM
2
Published 10-01-2020 Control # 699-00

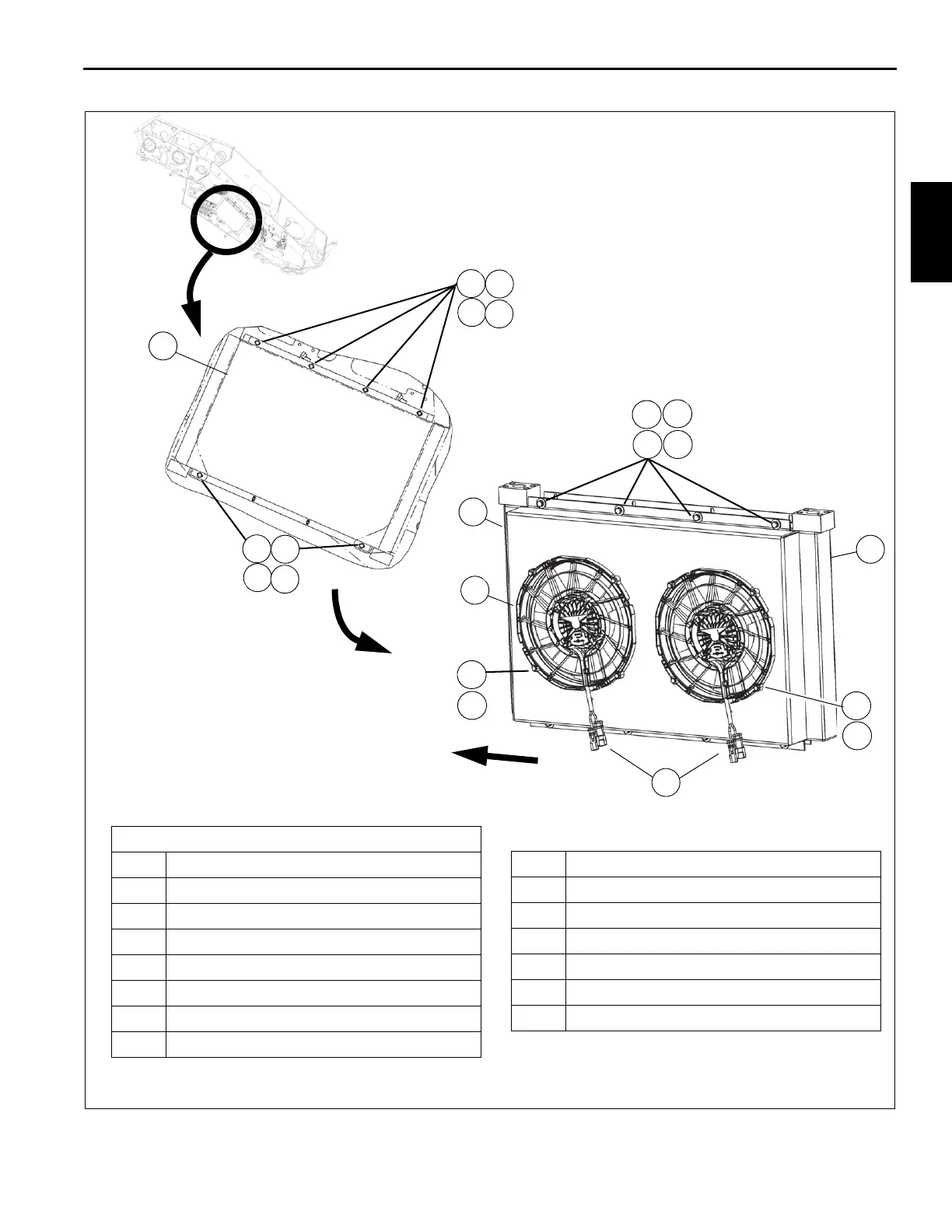

FIGURE 2-3
10093
1
3
4
Forward
Hydraulic Oil Fan Assembly
1 Fan Assembly (Two places)
2 Fan Electrical Connector (Two places)
3 Core Assembly
4 Fan Shroud Assembly
5Nut
6 Washer
7 Lockwasher
8 Capscrew
2
5
6
7
8
9
15
14
14
15
13
11
10
12
9 Superstructure Frame
10 Capscrew
11 Lockwasher (x2)
12 Washer
13 Nut
14 Capscrew
15 Washer
5
6
7
8
10097
10094
