Manitowoc Grove GRT9165 Service Manual

2-15
GROVE
GRT9165 SERVICE MANUAL HYDRAULIC SYSTEM
2
Published 10-01-2020 Control # 699-00
Pump No. 2 Removal
1. Remove hardware as needed to gain access to the
pump. The pump is bolted to the engine’s torque
converter.
2. Tag and disconnect the supply line from the pump. Cap
or plug the line and port.
3. Tag and disconnect the pump distribution lines from the
pump. Cap or plug the lines and ports.
4. Remove the capscrews, spacer, washers, and gaskets
attaching the pump to the drive pad on the torque
converter. Remove the pump.
5. Clean the gasket material from the drive pad of the
drive-through charge pump and from the pump.

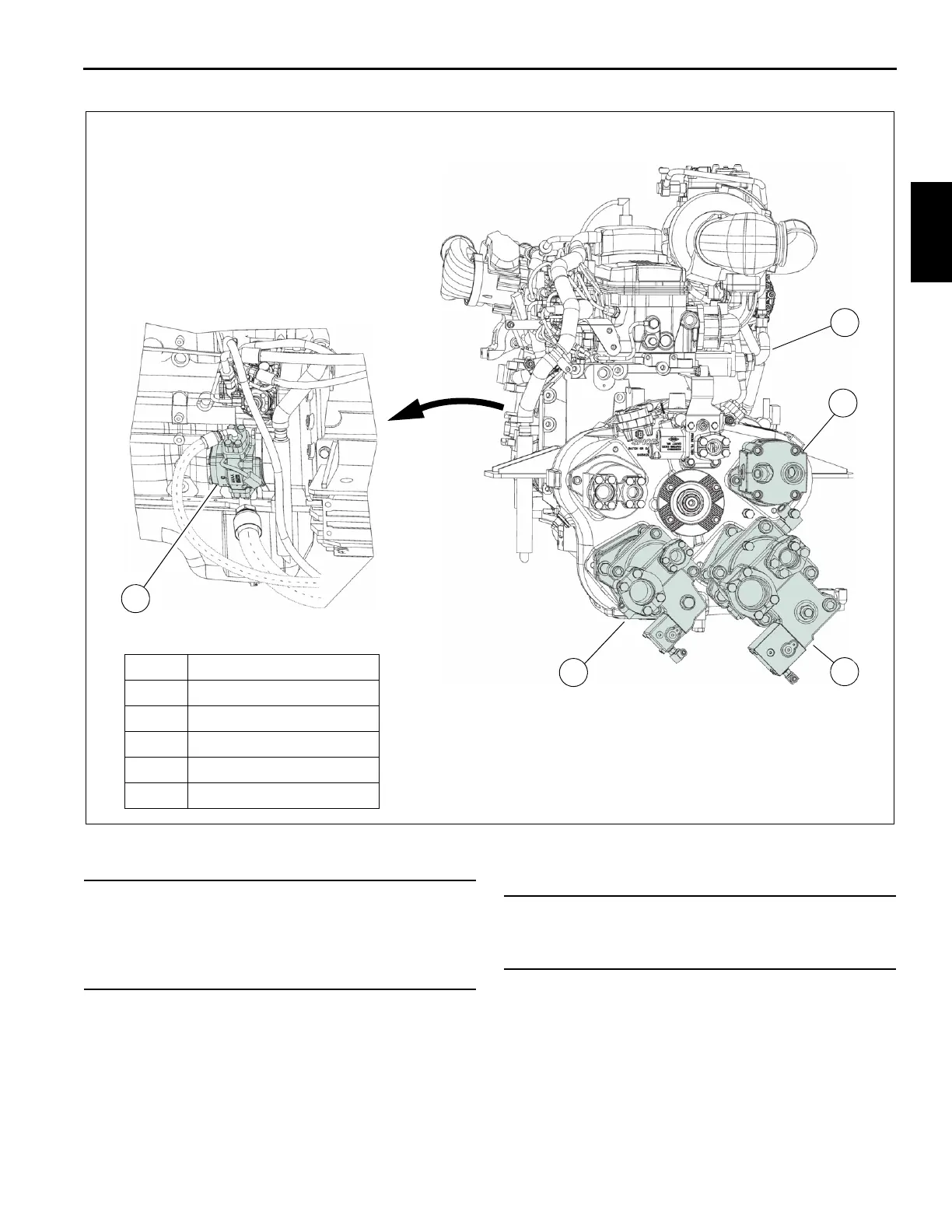

FIGURE 2-4
Item Description
1 Hydraulic Pump No. 1
2 Hydraulic Pump No. 2
3 Hydraulic Pump No. 3
4 Hydraulic Pump No. 4
5Engine
1
4
2
3
Note: hoses and drive shaft
not shown for clarity
5
10095
10096
CAUTION
Absolute cleanliness is essential when working on the
hydraulic pumps. The presence of dirt and foreign
materials in the system can result in serious damage or
inadequate operation.
CAUTION
Keep the pump as level as possible to avoid damaging
the input spline.
