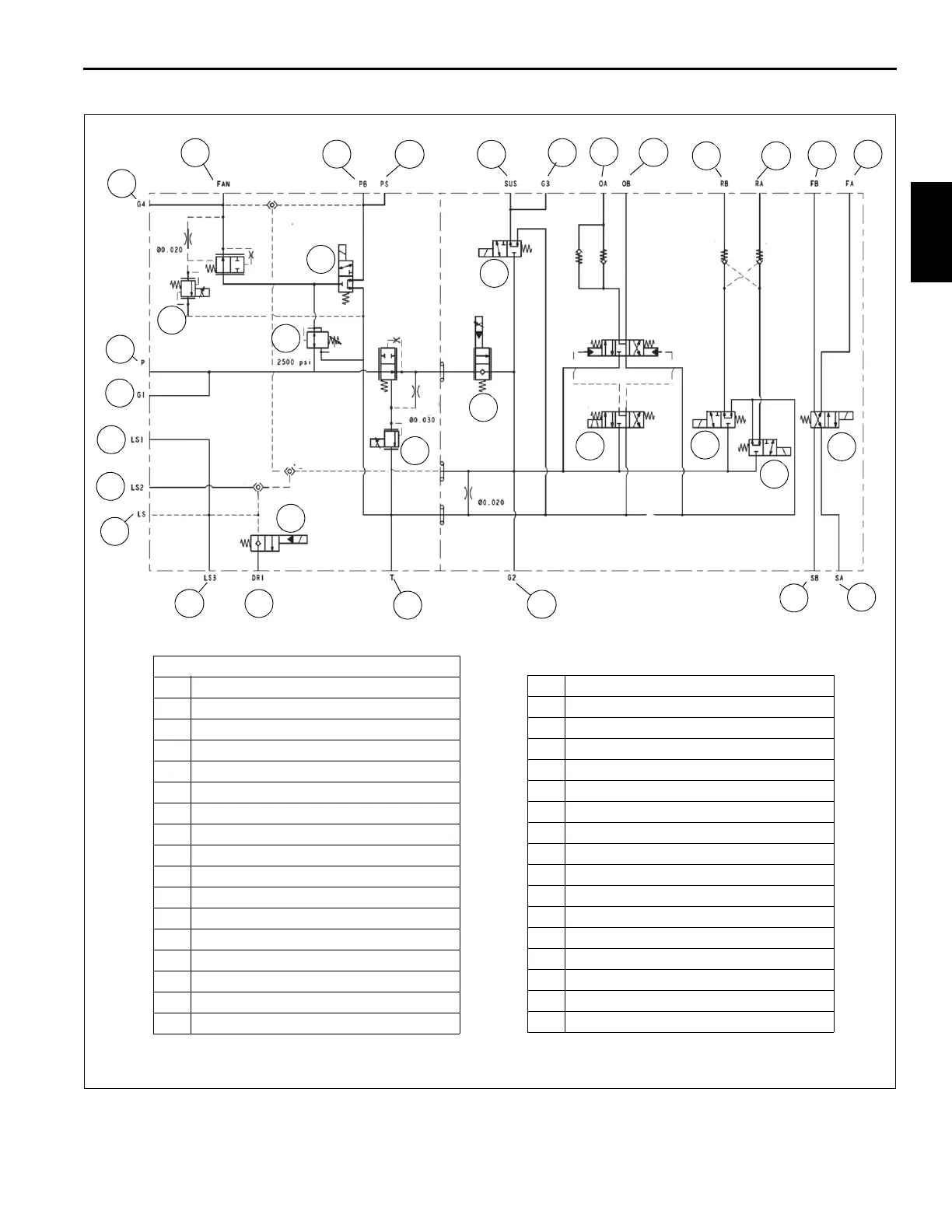

FIGURE 2-8 continued
Carrier Manifold Valve
1 Transmission Fan Port
2 T Port — Tank
3 Load Sense Port — LS3
4 PS Port — Park Brake
5 PB Port
6 P Port — Supply
7 RA Port — Rear Steer
8 OB Port — Outrigger Extend
9 Gauge Port — GP2
10 Solenoid Valve — Outriggers
11 Solenoid Valve — Rear Steer
12 Solenoid Valve — Single Axle Reversal
13 Solenoid Valve — Suspension
14 Solenoid Valve — Rear Steer
15 Flow Control
16 Solenoid Valve — Load Sense Dump
17 Pressure Reducing Valve
18 Solenoid — Transmission Fan Coil
19 Gauge Port — G4
20 Load Sense Port — LS
21 Gauge Port — G1
22 Gauge Port — G3
23 SUS Port — Suspension
24 RB Port — Rear Steer
25 FA Port — Single Axle Reversal
26 Load Sense Port — LS1
27 FB Port — Single Axle Reversal
28 SA Port to Swivel Port 7
29 OA Port — Outrigger Retract
30 Load Sense Port — LS2
31 DR1 Port — Load Sense Dump
32 Solenoid Valve — TS1
33 Solenoid Valve — Park Brake
34 Port SB to Swivel Port 6
2
1
3
4
5
6
7
8
9
20
28
19
10
11
12
13
14
15
16
18
17
21
23
22
24
25
26
27
29
34
30
31
32
33
10101
