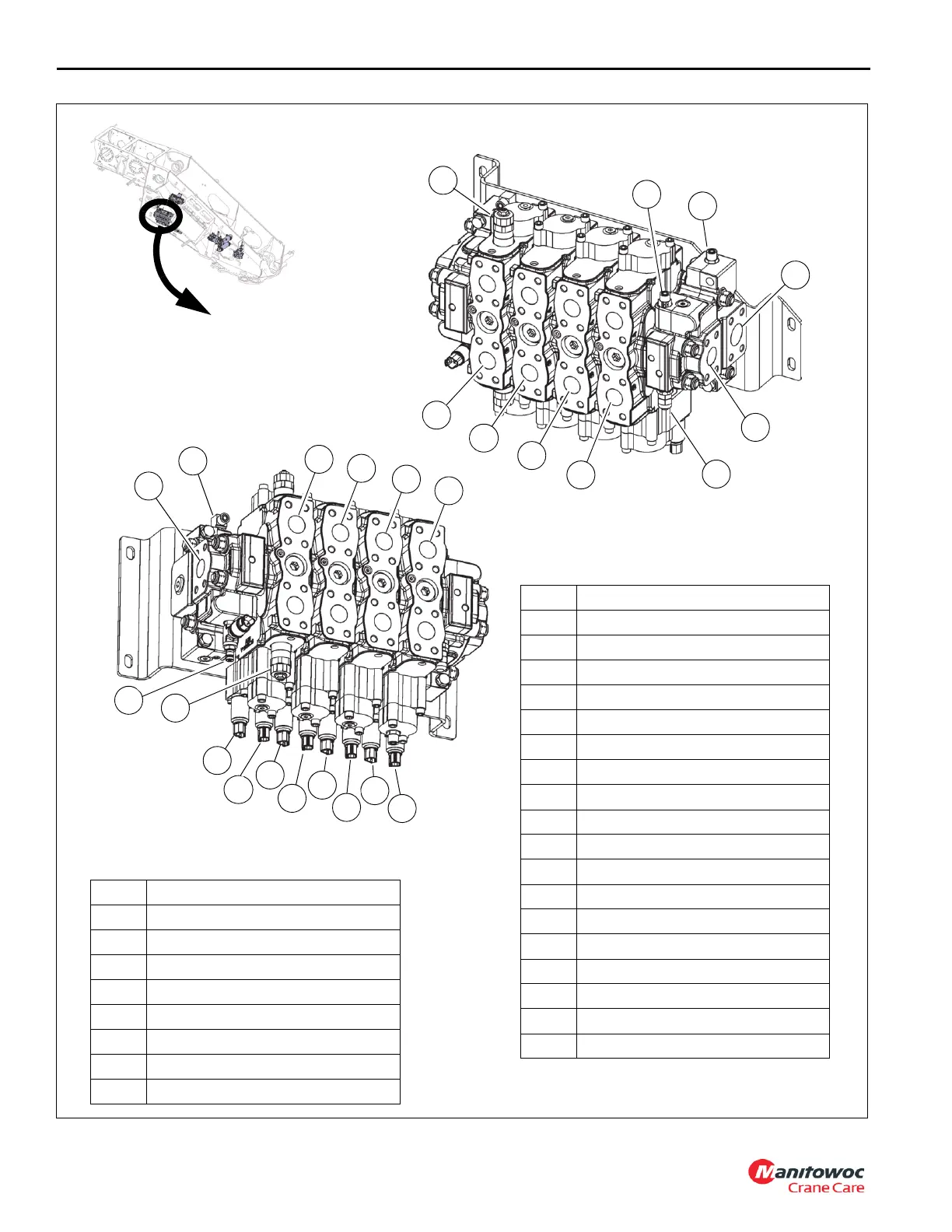

FIGURE 2-14
Main Directional Control Manifold Valve
9
5
7
1
3
10
10108
17
21
14
23
20
12
2
4
6
8
10109
13
15
16
11
Item Description
1 Port 1A - Telescope Extend
2 Port 1B - Telescope Retract
3 Port 2A - Auxiliary Hoist Up
4 Port 2B - Auxiliary Hoist Down
5 Port 3A - Main Hoist Up
6 Port 3B - Main Hoist Down
7 Port 4A - Lift Cylinder Up
8 Port 4B - Lift Cylinder Down
9 Solenoid Valve - Telescope
10 Solenoid Valve - Telescope
11 Solenoid Valve - Auxiliary Hoist
12 Solenoid Valve - Auxiliary Hoist
13 Solenoid Valve - Main Hoist
14 Solenoid Valve - Main Hoist
15 Solenoid Valve - Lift Cylinder
16 Solenoid Valve - Lift Cylinder
17 Telescope Extend Relief Valve
18 Telescope Retract Relief Valve
19 Gauge Port - Inlet Diagnostic
20 Load Sense Relief Valve
21 Pilot Supply Port
22 Load Sense Out Port
23 Outlet Port
24 Inlet Port
25 Pilot Drain Port
26 Inlet Port (From Swivel Port 2)
Item Description
19
18
22
24
25
26
