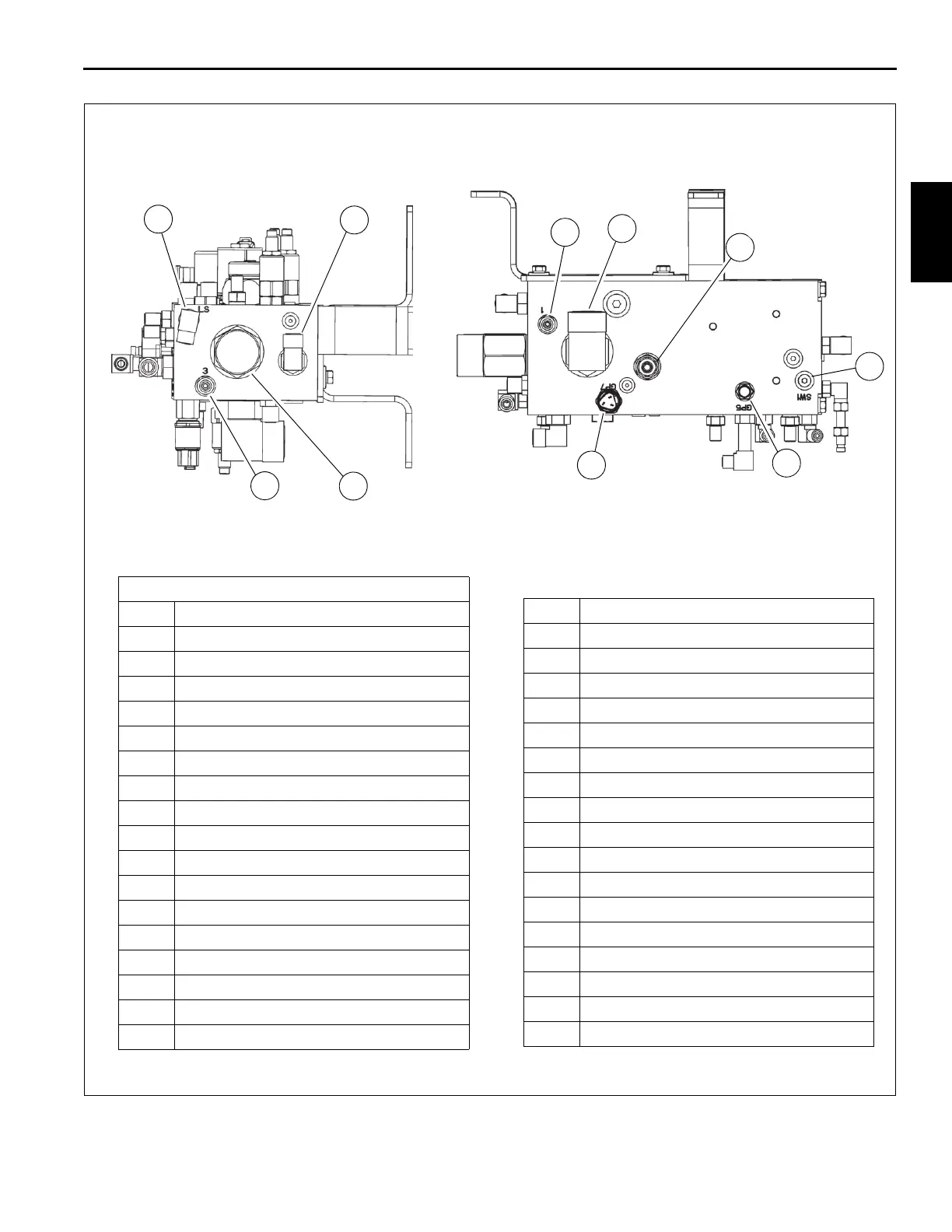

Accessory Manifold Valve
1 Drain Port Outlet (DR)
2 Gauge Port (GP1)
3 Solenoid Valve - Swing Brake Apply
4 Solenoid Valve - Swing Brake Release
5 Pressure Reducing Valve - 280 psi
6 Pressure Reducing Valve - 450 psi
7 Solenoid Valve - Pilot Supply
8 Load Sense Port (4)
9 Inlet Port (SYS)
10 Pressure Reducing Valve - 3250 psi
11 Check Valve
12 Gauge Port (GP6)
13 Priority Valve - Steering
14 Load Sense Port (3)
15 Load Sense Port (LS)
16 Check Valve
17 Load Sense (5)
18 Drain Port Inlet (2)
19 Check Valve
20 Pilot Supply Port (PS1)
21 Outlet Port (CB)
22 Gauge Port (GP7)
23 Inlet Port (P)
24 Pressure Relief Valve - 3000 psi
25 Work Port (SW2)
26 Gauge Port (GP5)
27 Work Port - Swing Brake Apply (SB)
28 Gauge Port (GP3)
29 Work Port - Swing Brake Release (SBR)
30 Work Port - Brakes (BR)
31 Gauge Port (GP4)
32 Work Port (PA)
33 Work Port (PS2)
34 Work Port (SW1)
35 Work Port - Steering (STR)
36 Load Sense Port (1)
FIGURE 2-16 continued
23
26
22
34
36
10117
24
14
13
15
10118
32
To Next Page
