HYDRAULIC SYSTEM GRT9165 SERVICE MANUAL
2-46
Published 10-01-2020 Control # 699-00
FIGURE 2-18
7752-01
7752-02
7752-03

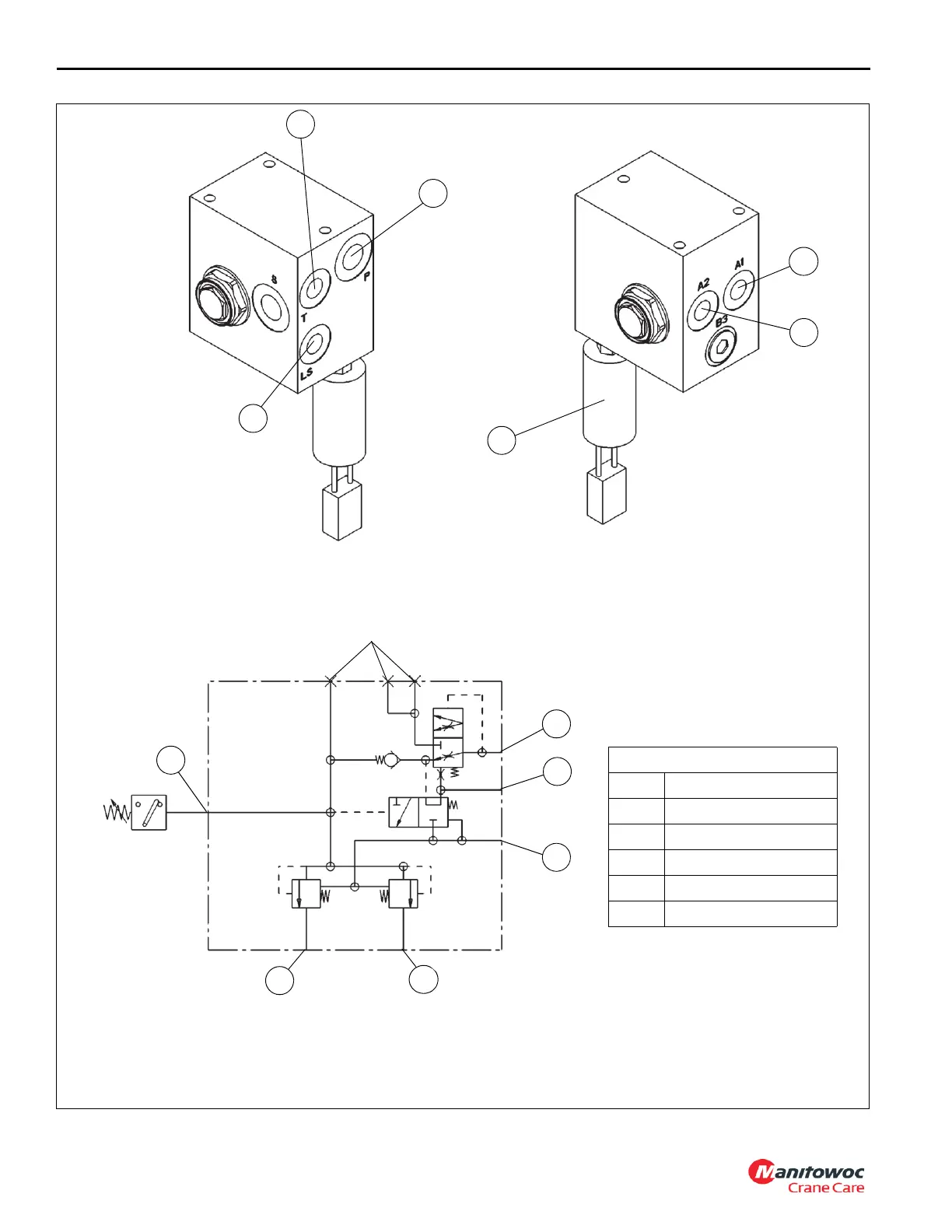

Dual Accumulator Charge Valve
1 Load Sense Port (LS)
2 Tank Port (T)
3 Pressure Port (P)
4 Accumulator Port (A1)
5 Accumulator Port (A2)
6 Pressure Switch
These ports
plugged
2
1
5
3
4
6
2
1
5
3
4
6
