3. The mirror holder is shipped with a protective film over the surface, before starting setup,
peel off the film. If required the mirror surface should be cleaned with water or isopropyl
alcohol, do not use any other types of solvents.
Installing BulletSense® Main Assembly:
1. Begin by clearing the shell plate and powering off the machine and tablet. Remove the
tablet, tablet holder, and offloading bin and set aside.
2. If Locate and remove the offloading bracket bolts (X2) with a 7-16” socket and set aside
(see Figure 2).

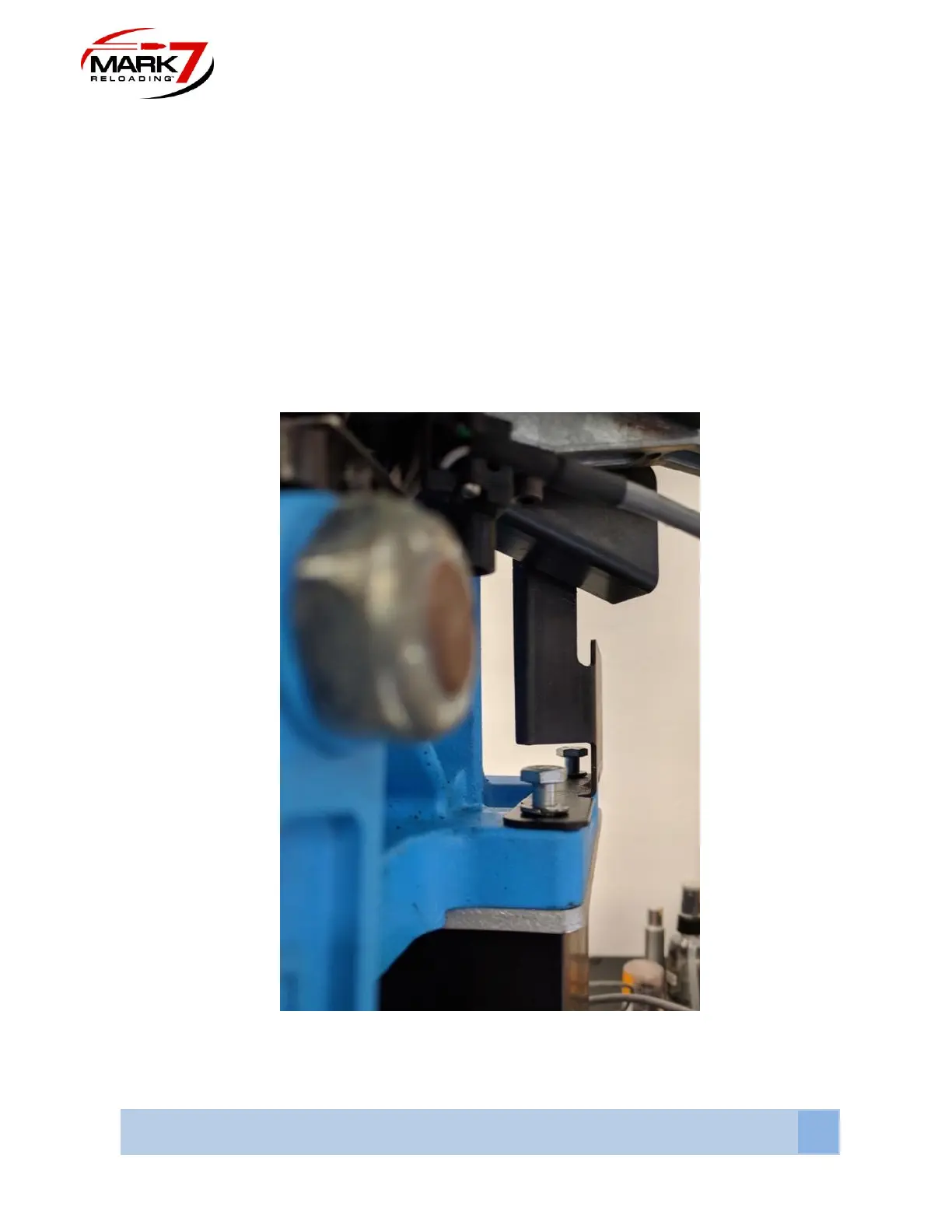

Figure 36: Removing offload bracket
