3. The case feeder pole bolts need to be removed to install the BulletSense mounting
bracket. It is recommended to remove the case feeder or have an assistant hold the
pole in place so the case feeder does tip over. Carefully remove the case feeder pole
bolts with a 3/16” Allen wrench and with a 7/16” socket affixed on the opposite side of
the press (see Figures 3 and 4).

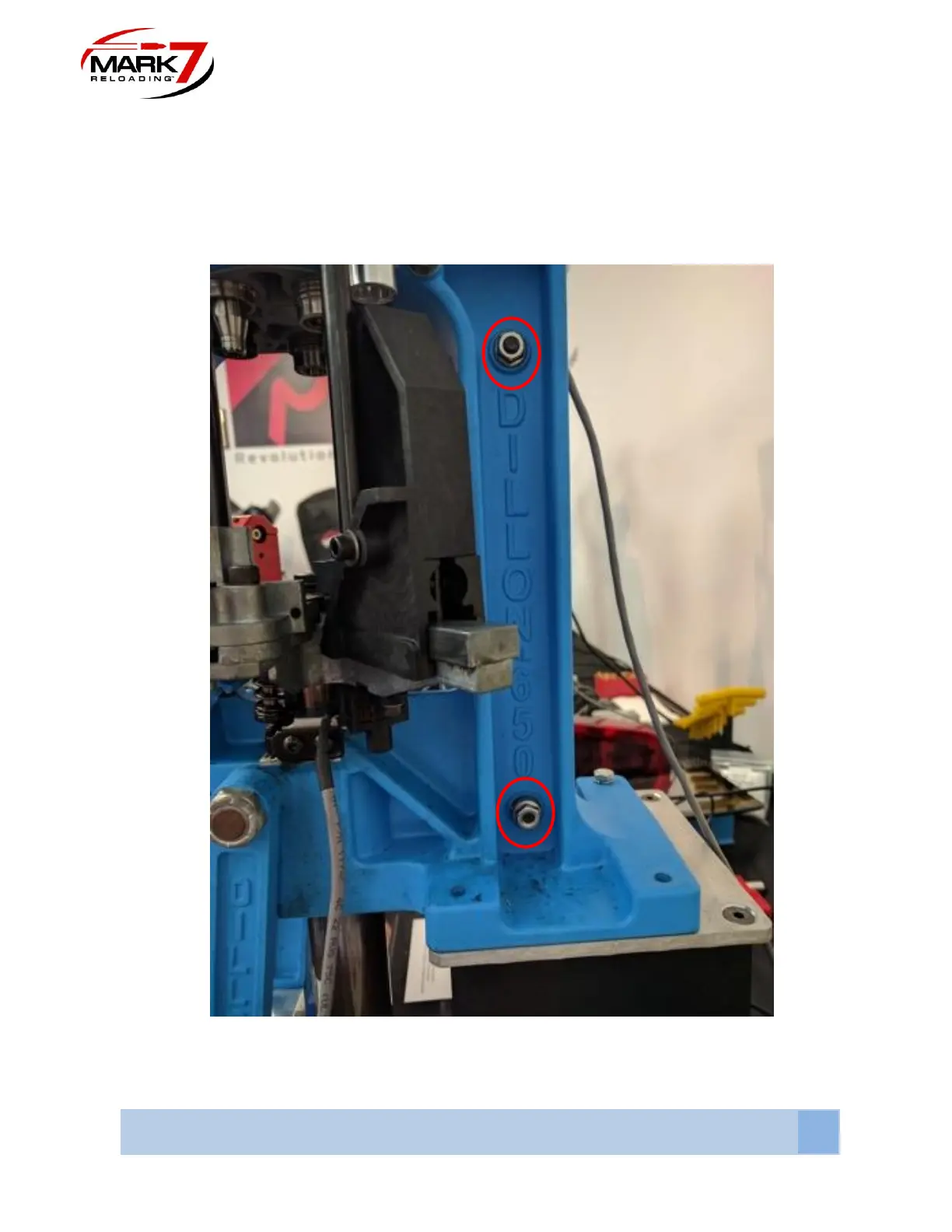

Figure 37: Case Feeder Mounting Bolt Locations
