5. Attach the Mirror Bracket to the top bracket mount with the 2X flat head 8-32 X 1.25” cap
screws. The mirror then can be adjusted using a 3/8” open ended wrench.

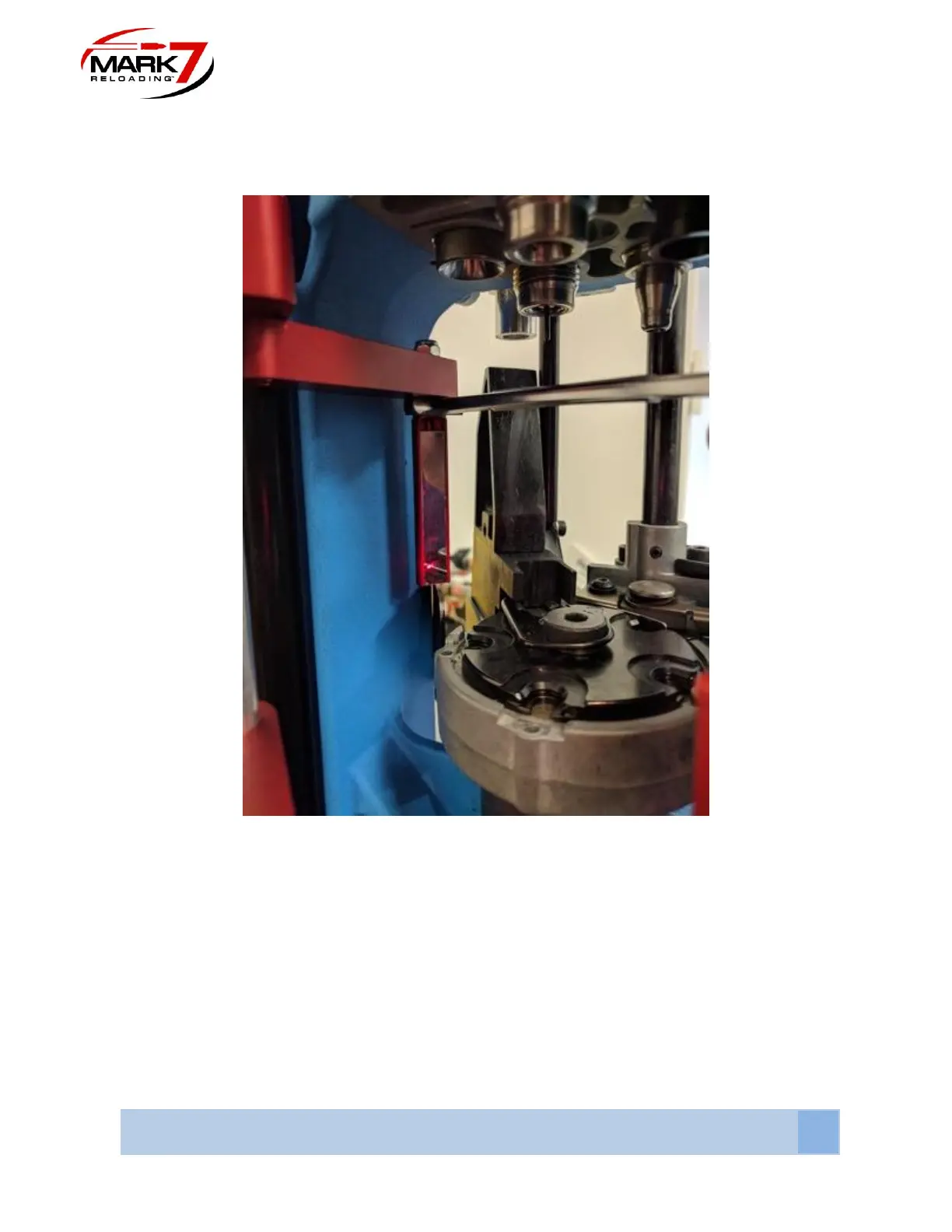

Figure 39: Installing Mirror Bracket
6. Attach the offloading bracket provided with the screws that came with the press if you
are loading pistol calibers. Note for rifle calibers: The standard bracket can still be
used for rifle (it just covers the bottom of the mirror). This isn't an issue though because
the laser head is mounted higher due to the taller cases and longer projectiles.
Adjusting BulletSense® Laser for Station 4 and Station 5:
