SINK current output /SOURCE current input connections

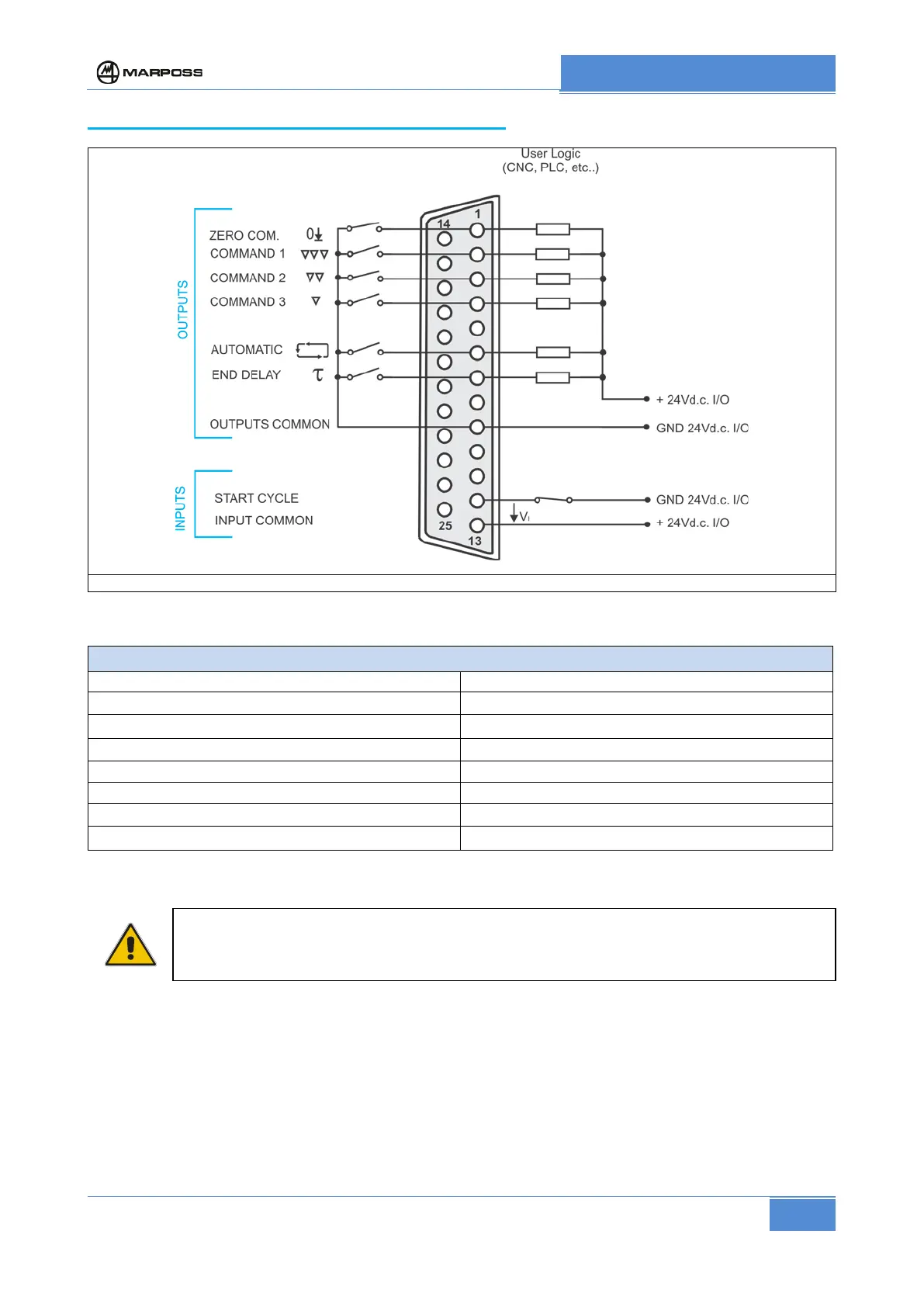

Figure 10 Example showing Sink Current Output/Source Current Input connections
I/O with SOURCE current inputs and SINK current outputs
Input circuits (SOURCE current 24 V d.c.)
I
I
(at 24 V)
7 mA typ.
V
I
(ON) 15 - 30V (li = 4 - 10mA)
V
I
(OFF)
= (-3 - 5) V
Output circuits (SINK current 24 V d.c.)
30 V d. c max.
I
O
max (ON)
50mA max. with resistive load
VDROPUT(ON)
3 V typ. (Io=50 mA)
I
LEAKAGE
(OFF)
max 100
µ
A
ATTENTION
The I/O must be driven by a SELV type power supply, as defined in EN60950-1.
I/O machine power supply specifications: Voltage 24 V d.c. (-20% /+25%) ripple between 100-
120 Hz; maximum ripple at 100-120Hz less than 1.2V peak value.
