L. FLOW DIRECTION: Tap DIRECTION to select either clockwise or counterclockwise ow
direction.
M. SCREEN LOCK: Locking the screen disables all touchscreen functions. To lock the screen: Press and hold
UNLOCKED
until the icon changes to LOCKED and a red border appears around the screen. To
unlock the screen: Press and hold LOCKED
until the icon changes to UNLOCKED .
N. LOGOUT: Tap to log out a user. NOTE: is option is only available if User Management is enabled in
Settings (for further information see "
User Management" on page 2-8).
O. SETTINGS: Tap to access the Settings Screen (for further information see "Settings" on page 2-4).

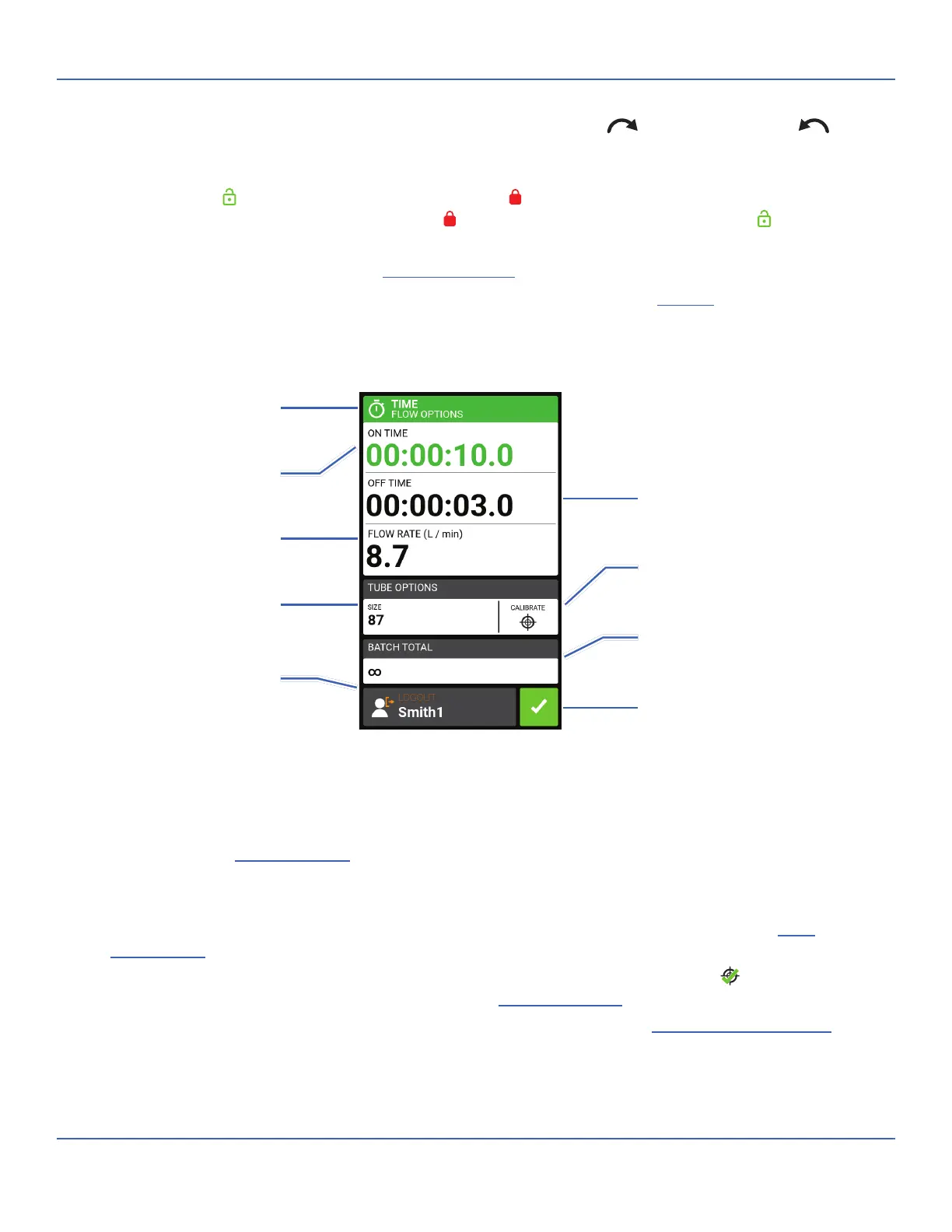

Time Mode Edit Screen
Time Mode Operation
General Preparation:
• Con rm the correct tubing has been selected and is properly loaded into the pump drive (for further
information see "
Loading Tubing" on page 2-10).
• Con rm all uids and containers are ready.
• Switch the drive on using the power switch located at the rear of the drive. NOTE: If User Management
is enabled you may be prompted for a username and password (For further information see "
User
Management
" on page 2-8). e touchscreen display will revert to the previously used operation mode.
• Con rm that the tubing has been calibrated by checking that Calibration Complete
is displayed on the
Time Mode Edit Screen (for further information see "
Tube Calibration" on page 2-13).
• If required, prime the pump before operation (for further information see "
Priming the Pump Drive" on
page 2-12).
Calibrate
Off Time
Confirm
Batch Total
Mode Name Banner
On Time
Flow Rate
Tube Size
Tap to access the
On Time Edit Screen
Tap to return to
the previous screen
Tap to access the
Flow Rate Edit Screen
Tap to access the
Tube Size Screen
Tap to access the
Interval Time Screen
Tap to access the
Tube Calibration Screen
Tap to access the
Batch Total Screen
Logout
To Next Page
