3-10 Masterflex SS B/T Washdown Digital Pump Drive with Advanced Connectivity
Section 3: Operation
Masterflex
K. START/STOP/PAUSE: During operation, the display will change from START to PAUSE STOP/
RESET
.
L. FLOW DIRECTION: Tap DIRECTION to select either clockwise
or counterclockwise  ow
direction.
M. SCREEN LOCK: Locking the screen disables all touchscreen functions. To lock the screen: Press and
hold UNLOCKED
until the icon changes to LOCKED and a red border appears around the
screen. To unlock the screen: Press and hold LOCKED
until the icon changes to UNLOCKED .
N. LOGOUT: Tap to log out a user. NOTE:  is option is only available if User Management is enabled in
Settings (for further information see "User Management" on page 2-8).
O.
SETTINGS: Tap to access the Settings Screen (for further information see "Settings" on page 2-4).

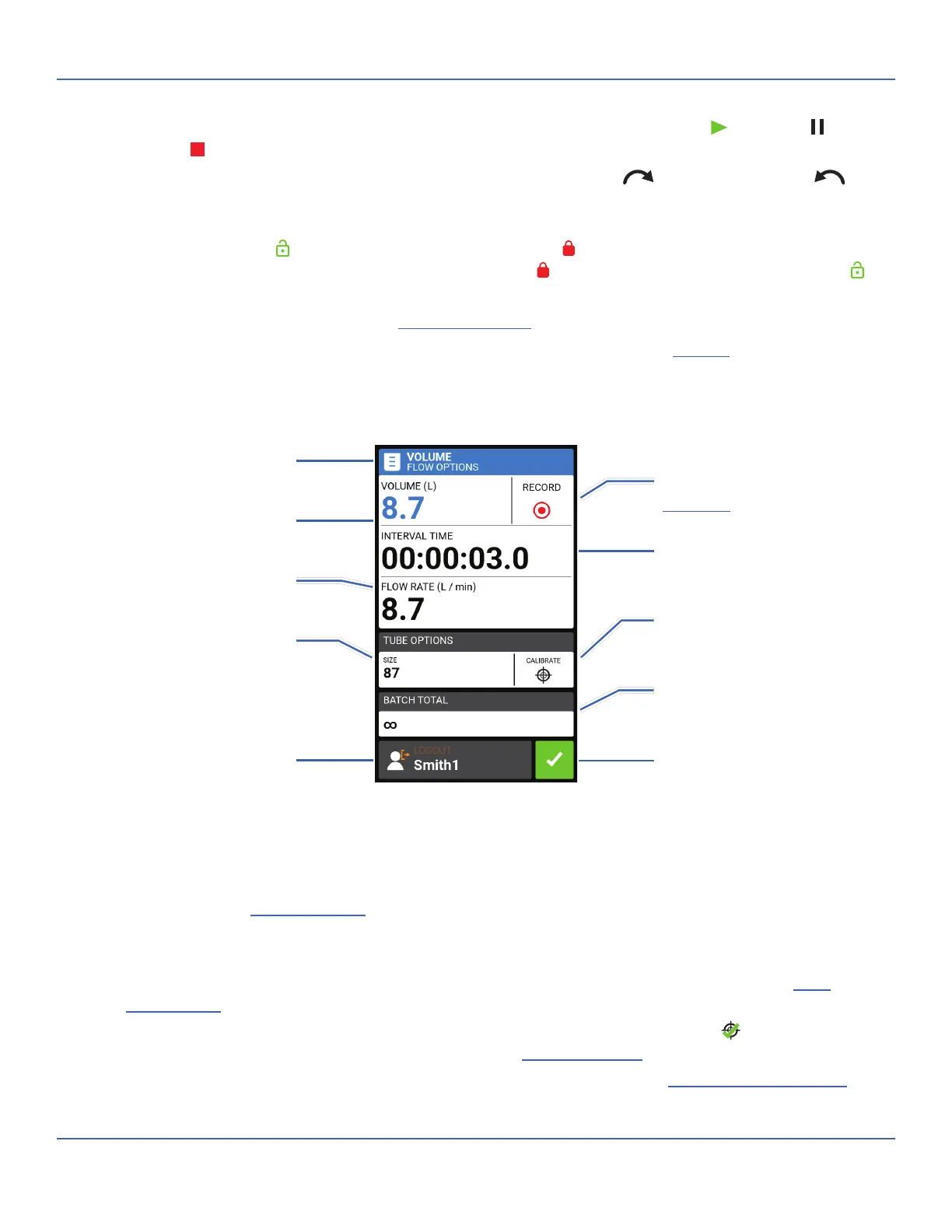

Volume Mode Edit Screen
Volume Dispense Mode Operation
General Preparation:
• Con rm the correct tubing has been selected and is properly loaded into the pump drive (for further
information see "Loading Tubing" on page 2-10).
• Con
rm all  uids and containers are ready.
• Switch the drive on using the power switch located at the rear of the drive. NOTE: If User Management
is enabled you may be prompted for a username and password (For further information see "User
M
anagement" on page 2-8). 
e touchscreen display will revert to the previously used operation mode.
• Con rm that the tubing has been calibrated by checking that Calibration Complete
is displayed on the
Volume Mode Edit Screen (for further information see "Tube Calibration" on page 2-13).
•
If required, prime the pump before operation (for further information see "Priming the Pump Drive" on
page 2-12).
Volume Record
Calibrate
Interval Time
Confirm
Batch Total
Mode Name Banner
Volume
Flow Rate
Tube Size
Tap to access the
Dispense Volume Screen
Tap to return to
the previous screen
Tap to access the
Flow Rate Edit Screen
Tap to access the
Tube Size Screen
Tap to access the
Interval Time Screen
Tap to access the
Tube Calibration Screen
Tap to access the
Batch Total Screen
Tap to record fluid volumes (see
"Volume Record" on page 3-12)
Logout
Tap to log out a user
