• Click the Destination Port Determination link.
• To configure the table for the SIP Trunk, click the SIP-Calling Number Based link.
• To configure the table for the FXO Port, click the FXO- Calling Number Based link.

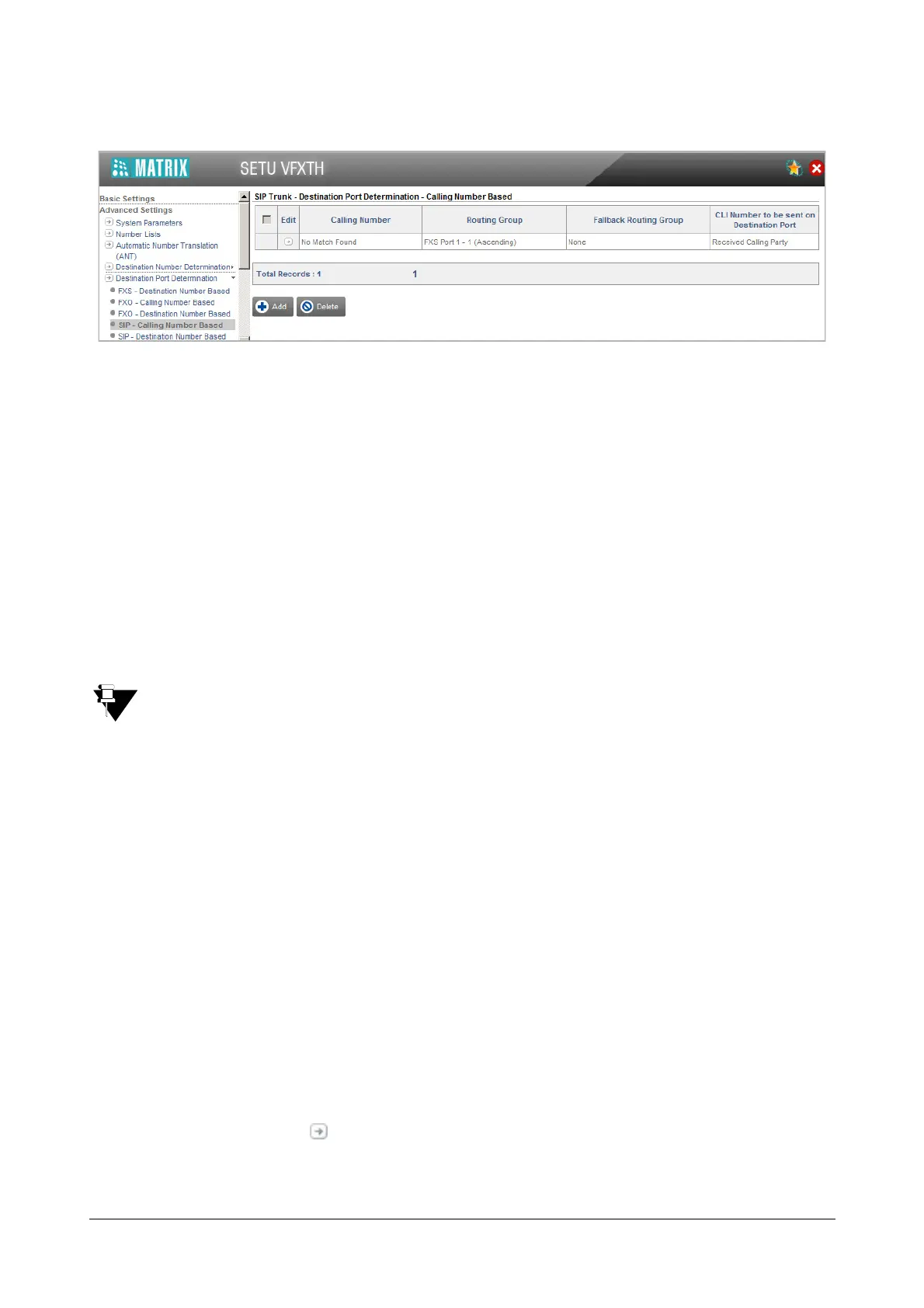

The Calling Number Based Table page opens.
• Click Add to add an entry. A new window opens. Configure the following parameters:
• In the Calling Number field, enter numbers (max. 24 characters) from which you expect calls to be
received. All ASCII characters are allowed. Default: blank.
• Select the CLI Number to be send on Destination Port. You may select from the following options:
• Received Calling Party
• Received Called Party
Default: Received Calling Party
CLI Number to be sent on Destination Port is applicable when FXS Port/Group is determined as the
Destination Port.
• Create the Routing Group.
• To create a group of sequential FXS Ports as members,
• Select the desired FXS Port numbers as members. Default: 1.
• In the in - order field, select the order in which the system should check for a free member FXS
Port to route the call.
Select Ascending to start checking from the first to the last member FXS Port. Select
Descending to start checking from the last to the first member FXS Port. Default: Ascending.
• To create a group of not-sequential FXS Ports as members,
• Select a FXS Group.
• Select FXS Group number. Default:1.
• Click Settings . The FXS Groups window opens. Create the FXS Group. See “Group” for
detailed instructions.
