• Similarly, when the user 3001 of location B calls 2001, the call is received on the SIP Trunk of the SETU
VFXTH and is placed to the IP address 115.118.161.165, as the system finds a matching entry for the
dialed number in the Peer-to-Peer table.
• On receiving a call, the SETU VFX at Location A routes this call through the FXS Port of the SETU VFX to
the FXO Port of the PBX, which is further routed to 2001.
How to Configure
For instructions on configuring the SIP Trunk parameters for the Peer-to-Peer application—SIP Trunk Mode, Peer-
to-Peer Table, SIP ID, Handling of Incoming Calls — see “SIP Trunks” under Basic Settings. You can also configure
the Peer-to-Peer Table from the SIP Trunk page under Basic Settings.
The Peer-to-Peer table stores upto 500 entries. Each entry consists of the parameters — Destination Number,
Destination Address and Name.
To configure the Peer-to-Peer Table,
• Log into Jeeves.
• Click the Advanced Settings link.

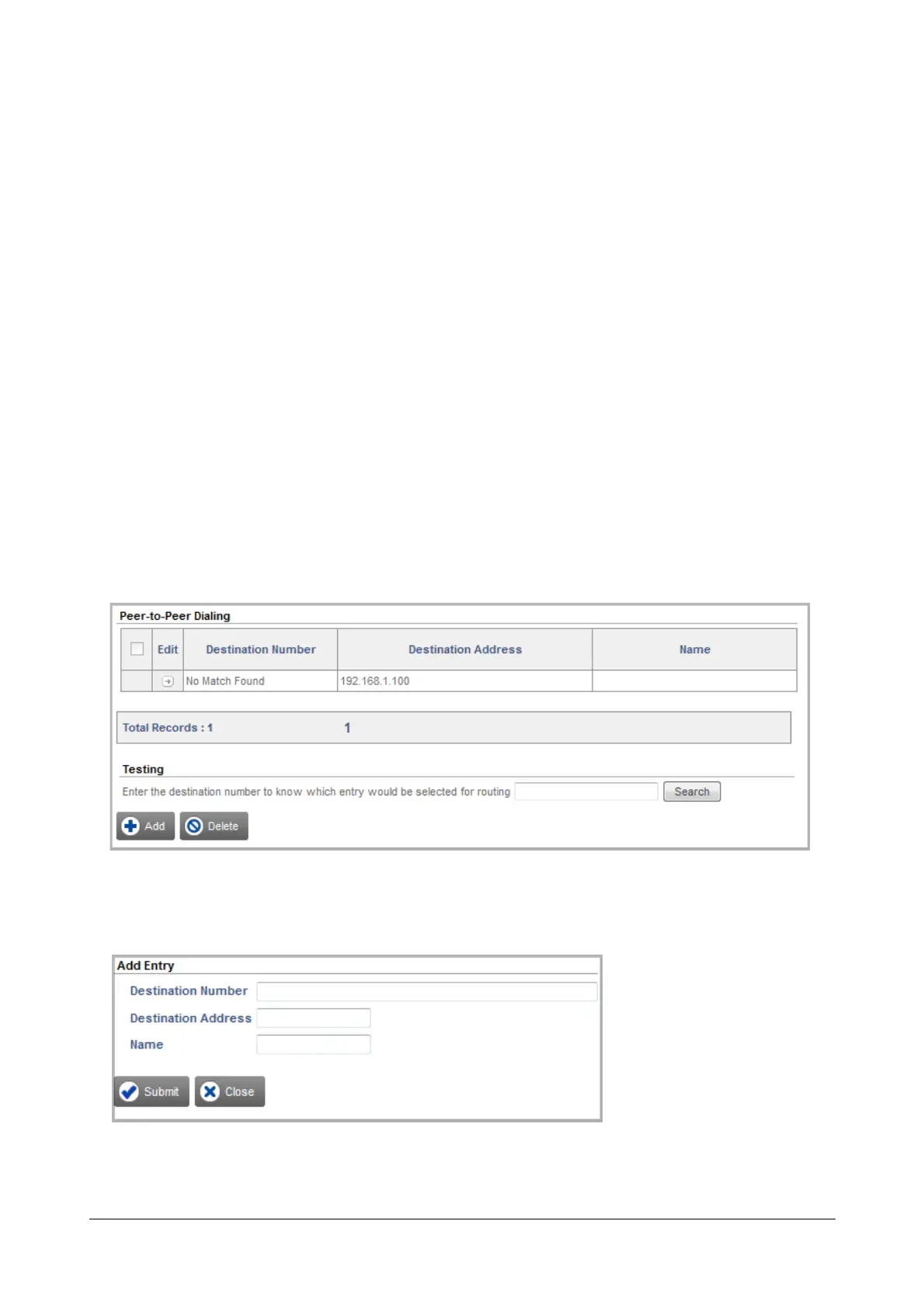

• Click the Peer-to-Peer Dialing link. The Peer-to-Peer table opens.
In the Peer-to-Peer table, the first entry is reserved for No Match Found.
• Click the Add button. A new window opens.
