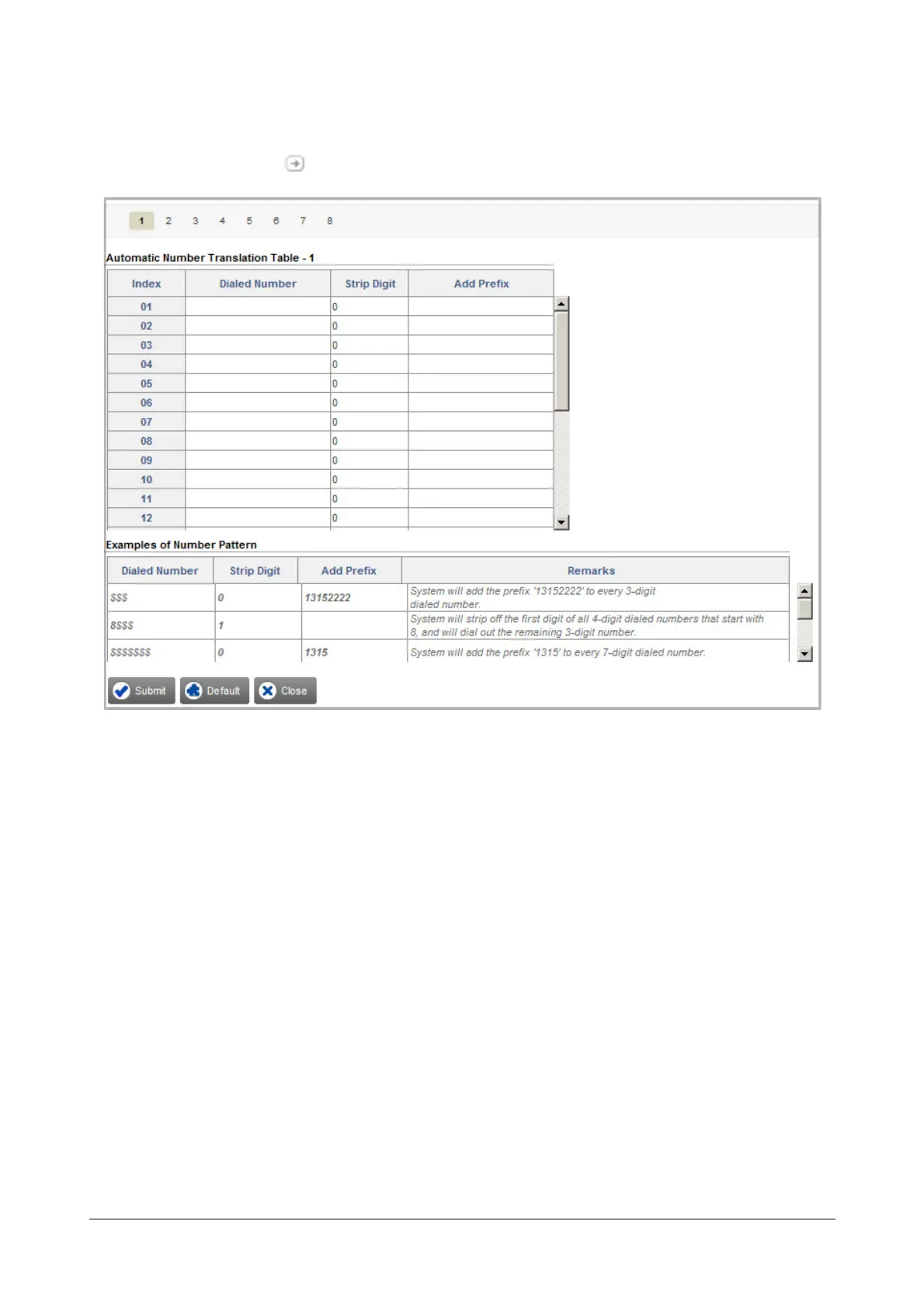

If you have not configured the Automatic Number Translation Table,
• Click Settings . The Automatic Number Translation Table page will open in a new window.
• You may configure the default Automatic Number Translation Table 1 or any other Table number (2
to 8) for the FXO Port. See “Automatic Number Translation (ANT)” to configure the ANT Table.
• Click Submit to save the ANT Table and close the window.
• Return to ANT parameter and assign the ANT Table you configured.
• Click Submit to apply List.
• To connect the Source Port with the Destination Port without waiting for the call on the Destination Port to
mature, enable the Connect Source Port when number is outdialed check box. Default: Disabled.
In all Destination Number Determination methods except After Answering the Call and Collecting the
Digits, the Source Port gets connected to the Destination Port only after the call has matured, i.e. the
called party has answered the call. Until the call matures, the caller hears only Ring Back Tone played by
the network.
By connecting the Source Port with the Destination Port immediately after the number is dialed, the caller
can know the state of the call; if the called party is busy, not responding, not reachable or is rejecting the
call.
• Click Submit to save.
