Matrox Extio N3408 - N3408 Receiver Unit (Back); Supported Connections

18 Matrox Extio 3 Series – User Guide

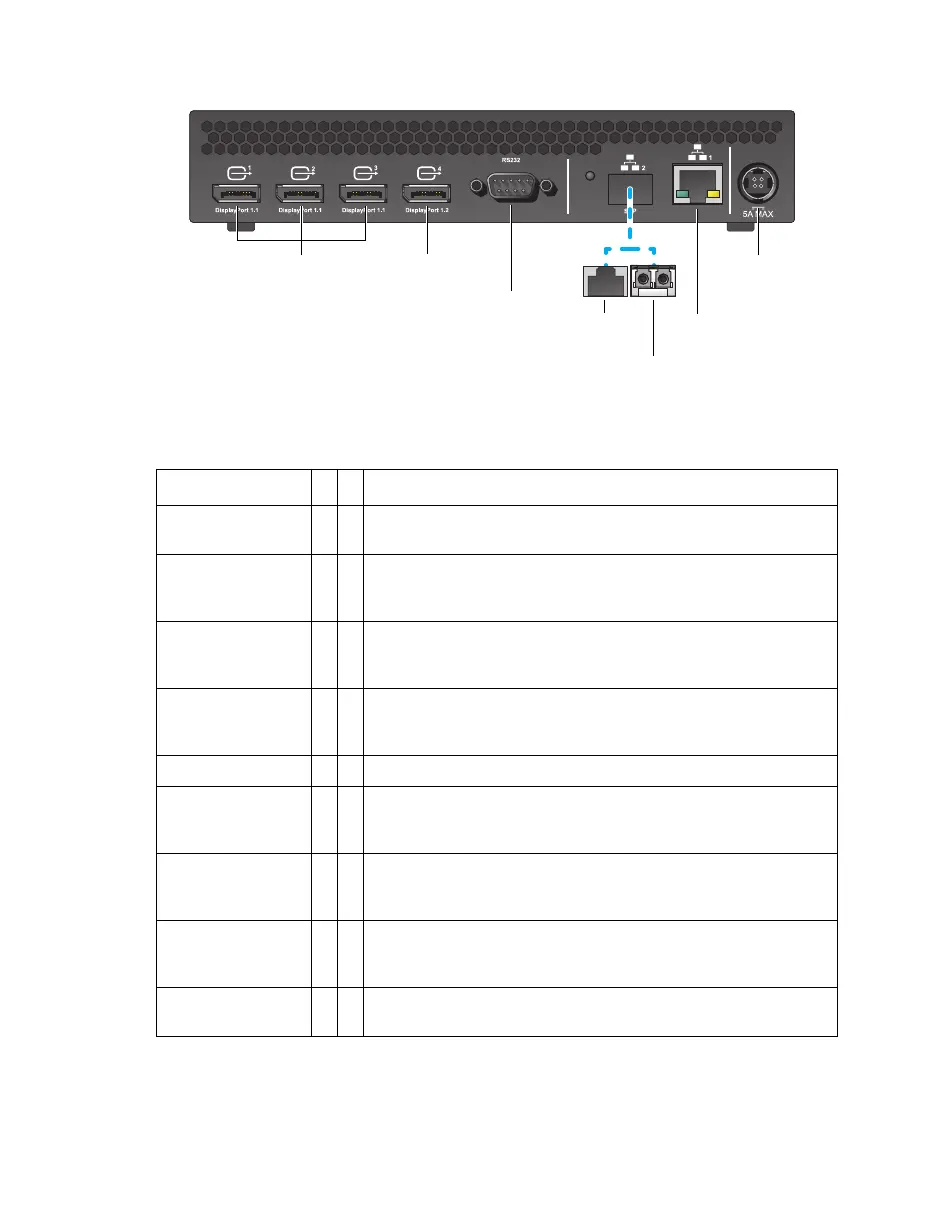

Extio N3408 receiver unit (Back)
Description of supported connections
Connector
Tx Rx
Description
12V DC power 99
Connect the12V DC power supply included with your product to
this connector.
Video In 9
Connect your video source (graphics hardware) to this connector.
Note: To connect to this connector, you need a shielded
DisplayPort cable.
Video Out 99
Connect a digital monitor to this connector.
Note: To connect to this connector, you need a shielded
DisplayPort cable.
Headphone 9
Connect your headphones to this connector. This connector
supports a 3.5 mm stereo jack. While headphones are
connected, the
Line Out connector remains enabled.
LAN1 99Connect an RJ45 cable to this connector.
LAN2 99
Connect an SFP module (RJ45 cable or LC-LC fiber optic cable)
to this connector. For more information, see “Installing the SFP
module”, page 22.
Line In 99
Connect the
Line Out connector of your computer (host) or of
another audio device (local or remote) to this connector. This
connector supports a 3.5 mm stereo jack.
Line Out 99
Connect the
Line In connector of your computer (host) or of
another audio device (local or remote) to this connector. This
connector supports a 3.5 mm stereo jack.
Microphone 9
Connect your microphone to this connector. This connector
supports a 3.5 mm stereo jack.
12V DC
power
Video Out
(DisplayPort 1.1)
RS232
Video Out
(DisplayPort 1.2)
LAN2
(RJ45)
LAN2
(LC-LC)
LAN1
(RJ45)
