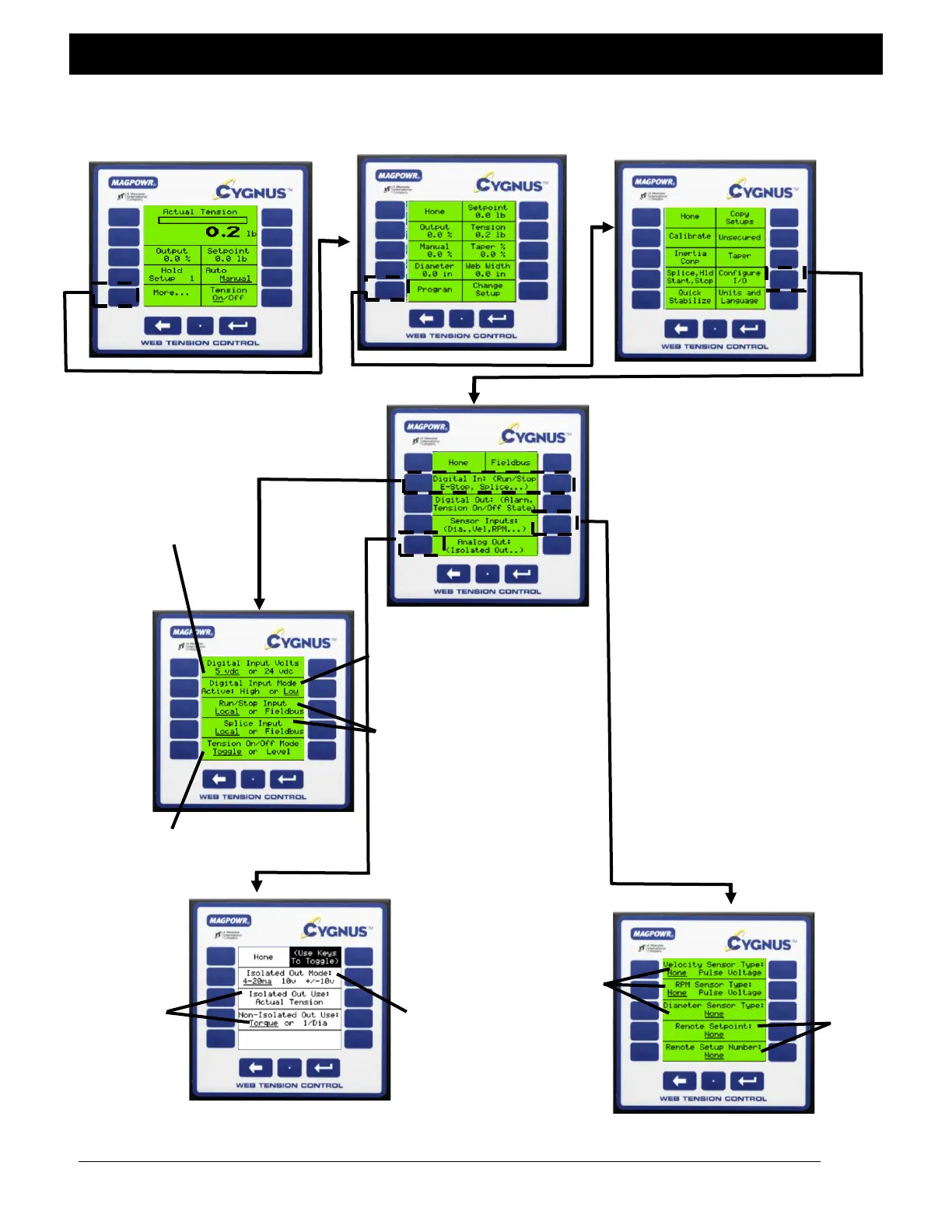

6.2.2 I/O configuration
(Home Screen)
Select optional
sensor type(s)
Select logic
type
Toggle activates keypad,
level requires logic input
Logic can be
active either
high or low
Select desired input
Select desired
isolated control output
type.
The CYGNUS
has two control
outputs. One is
isolated one is
non-isolated.
For
CYGNUS-SE
operation, the
isolated output is
automatically
adjusted to the
readout function.
See
Section
6.2.3
