TROUBLESHOOTING

www.maxcessintl.com

CYGNUS

MI 850A316 1 B

Page 40 of 66

9.4 Load cell diagnostics

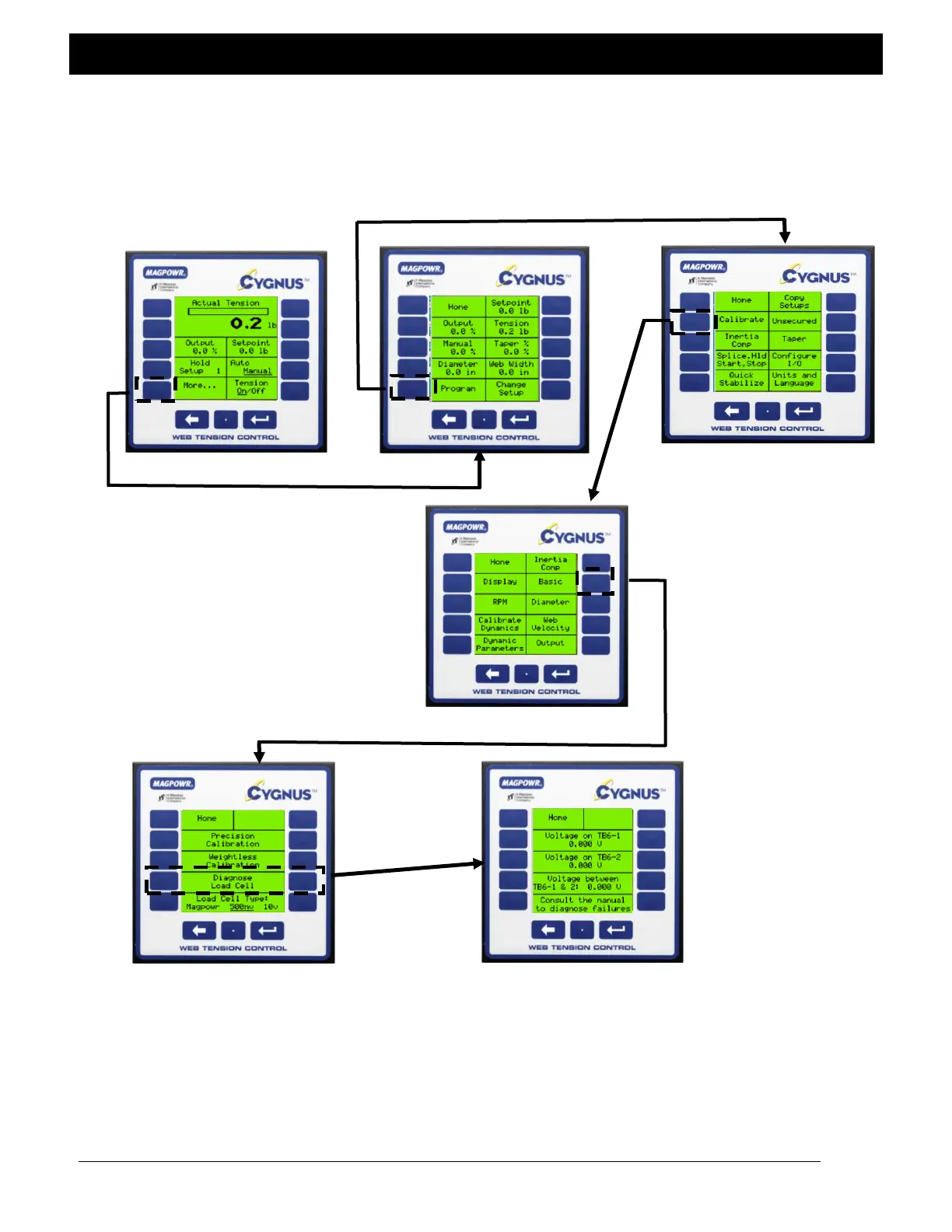

The CYGNUS features diagnostic tools for load cells. The values displayed in the “Diagnose Load Cell” screens

may aid in diagnostics. Refer to Table 1 for possible faults.

(Home Screen)

Refer to Table 1

for faults
