6.3 Load cell calibration (required)
6.3.1 Precision calibration
This is the most accurate method of calibration. Use for all applications in which tension accuracy is critical.
(Home Screen)
Confirm system type

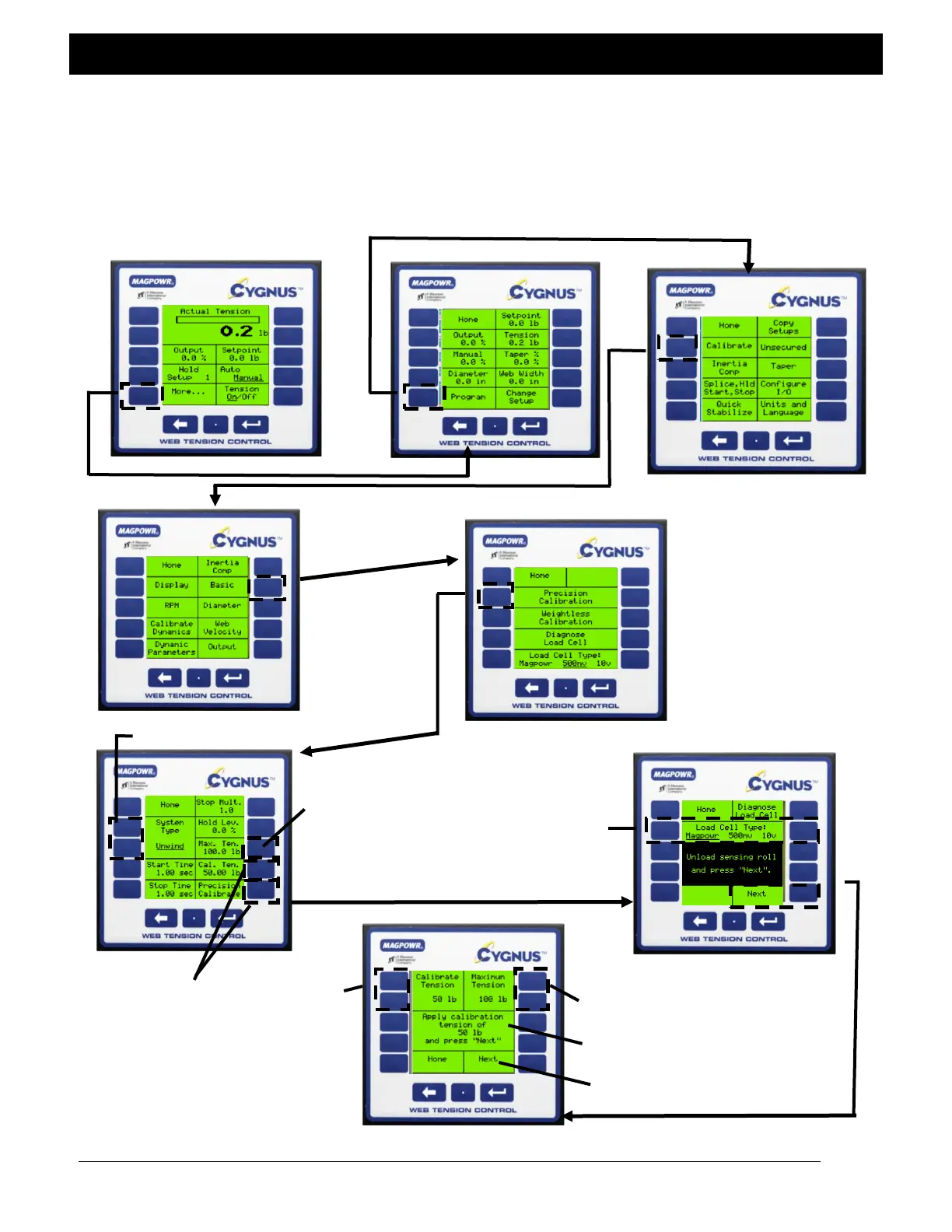

Refer to Figure 1
Enter maximum tension. This
will scale the analog meter
and bar graph. (Usually Confirm load
it is best to set max. tension cell type
approx. twice the value of (See Figure 4
the normal running tension.) for wiring load
. cell)
.
Instruction to unload roll
This is the calibration Confirm Value
weight that will be Confirm Value
used to calibrate the
the load cells. Press Instruction to apply calibration weight
“Precision Calibration”
to continue. Next to complete calibration
