OPTIONAL FUNCTIONS
8.9 Inverse diameter output (optional)
(NOT APPLICABLE FOR READOUT ONLY OPERATION)
The inverse diameter output function is used to slow the motor/drive input RPM to a clutch as a rewind roll builds.
This minimizes the slip watts required to be dissipated by the clutch and extends clutch life. This connection is
labeled 1/D and is connected between TB4.3 and TB4.4
CYGNUS has two control outputs.
Note: this is One is isolated and one is non-

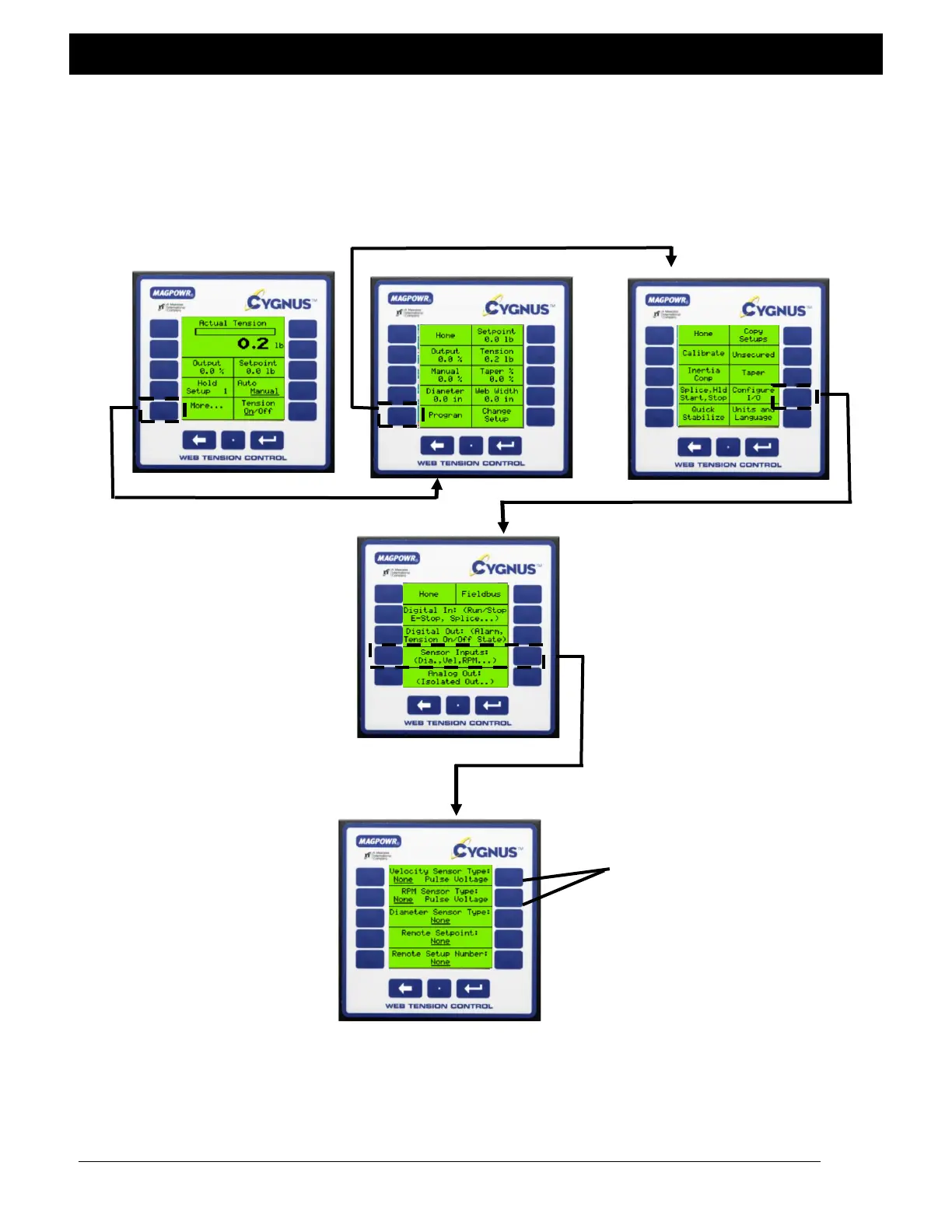

The screen you Isolated. Select the appropriate
Get on the Isolation for your 1/Dia output
emulator requirements.
