Maxcess MAGPOWR CYGNUS-S3 Series User Manual

SYSTEM SETUP
www.maxcessintl.com
CYGNUS
MI 850A316 1 B
Page 16 of 66
6.4 Optional input device calibration
(NOT APPLICABLE FOR READOUT ONLY OPERATION)
6.4.1 Web velocity calibration
(Machine must be running)
Web velocity input is an option. You only need to calibrate web velocity if you are using a velocity sensor.
Configure I/O must be configured to accept the appropriate signal before proceeding.

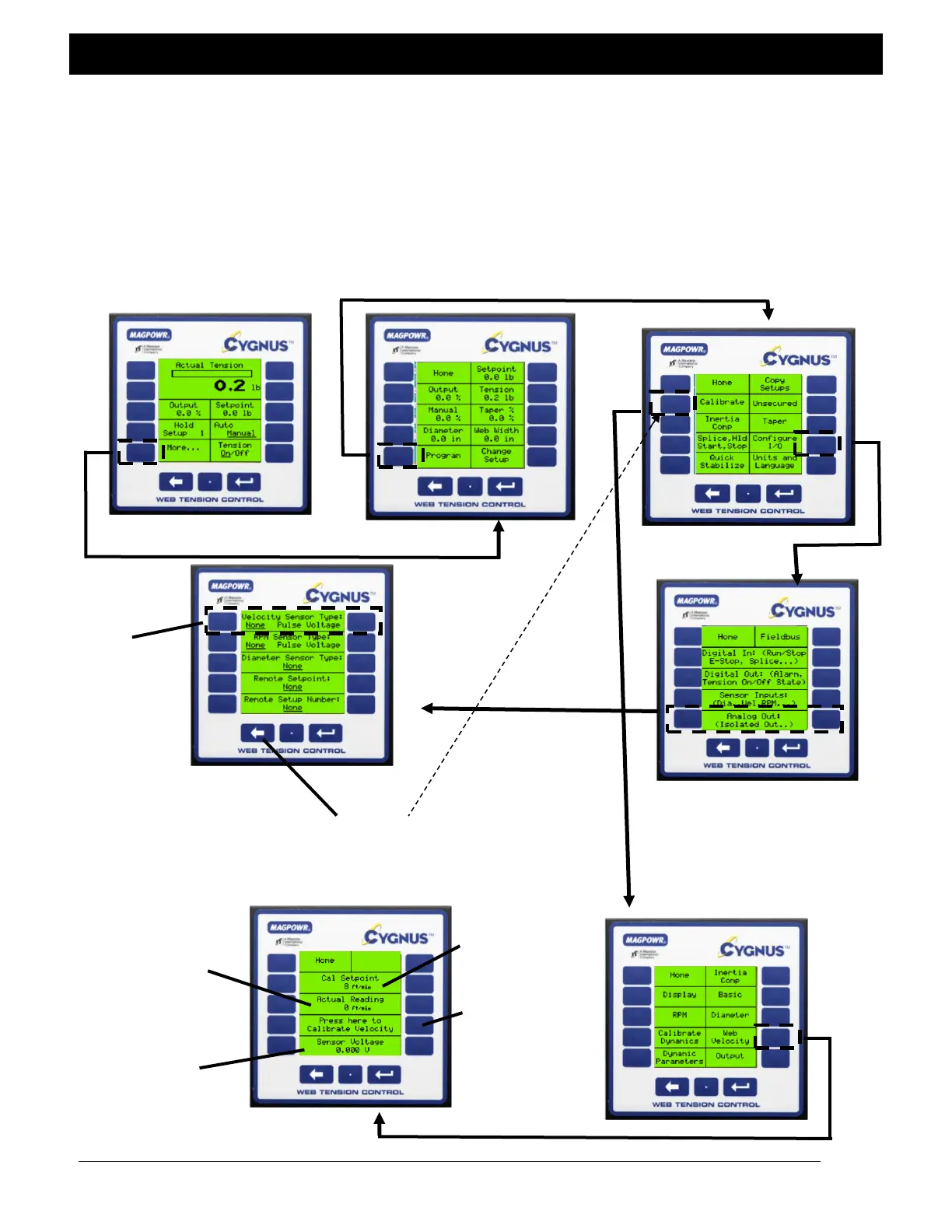

(Home Screen)
Toggle to
select
appropriate
sensor type
Back space two times
to return to Calibrate and
follow Calibrate steps
Enter current
After calibration actual web velocity
velocity will be
displayed
Press to calibrate
After calibration
actual signal from
velocity sensor
will be displayed in
either voltage or pulse
depending on the type selected
Do this
first
