Maxcess MAGPOWR CYGNUS-S3 Series - Figure 3. CYGNUS Wiring Diagram

FIGURES AND TABLES
www.maxcessintl.com
CYGNUS
MI 850A316 1 B
Page 59 of 66

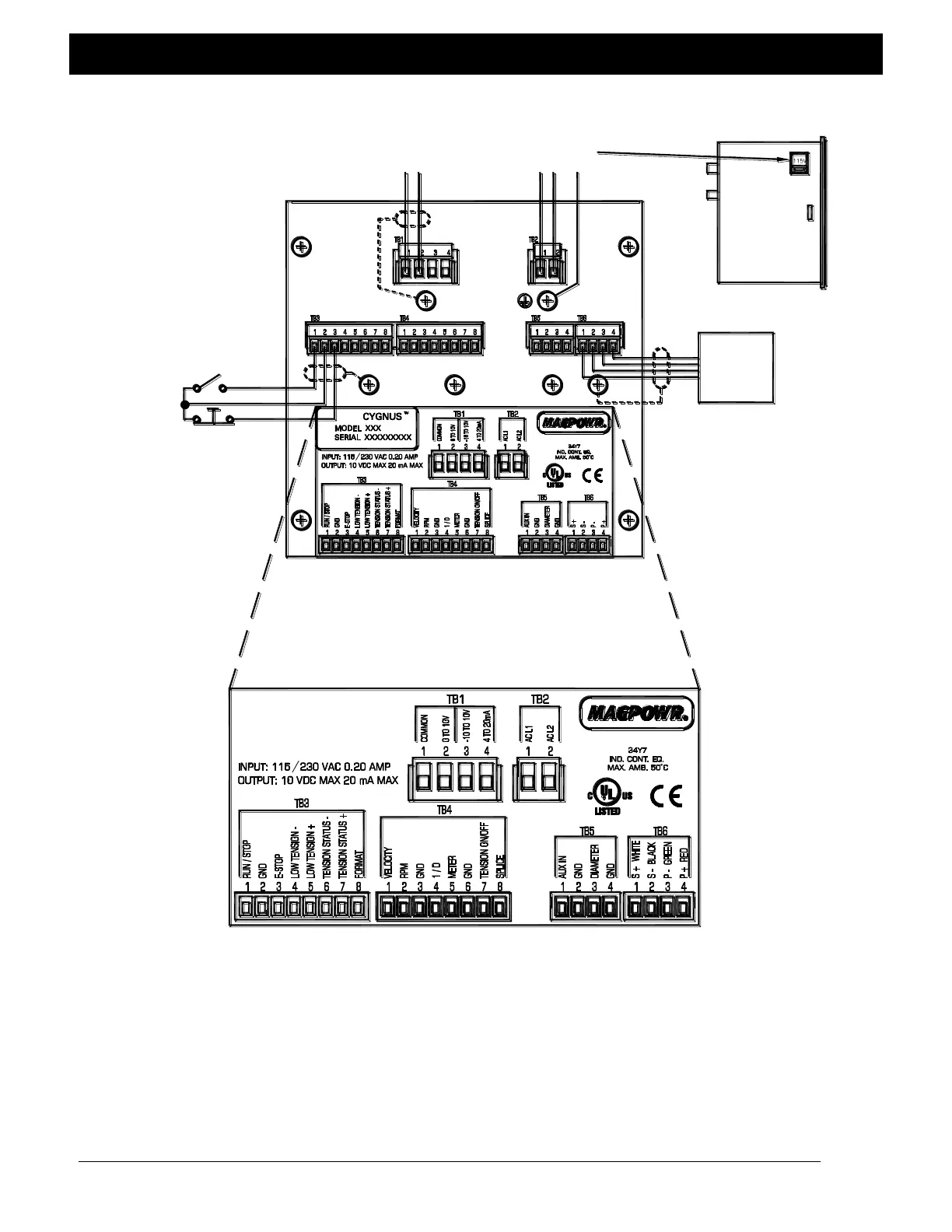

Figure 3. CYGNUS wiring diagram
FENTON, MO 63026 - USA
CYGNUS WIRING DIAGRAM
L1
115/230 VAC
L2 P.E.0-10VCOM
OUTPUT
LOAD
CELL
OPEN FOR RUN
OPEN FOR
E-STOP
FENTON, MO 63026 - USA
MAGPOWR
(SEE FIGURE 4
FOR DETAIL)
Figure 3
54
