COMPONENT ACCESS
Maytag Chopper Dishwashers
n
4-3

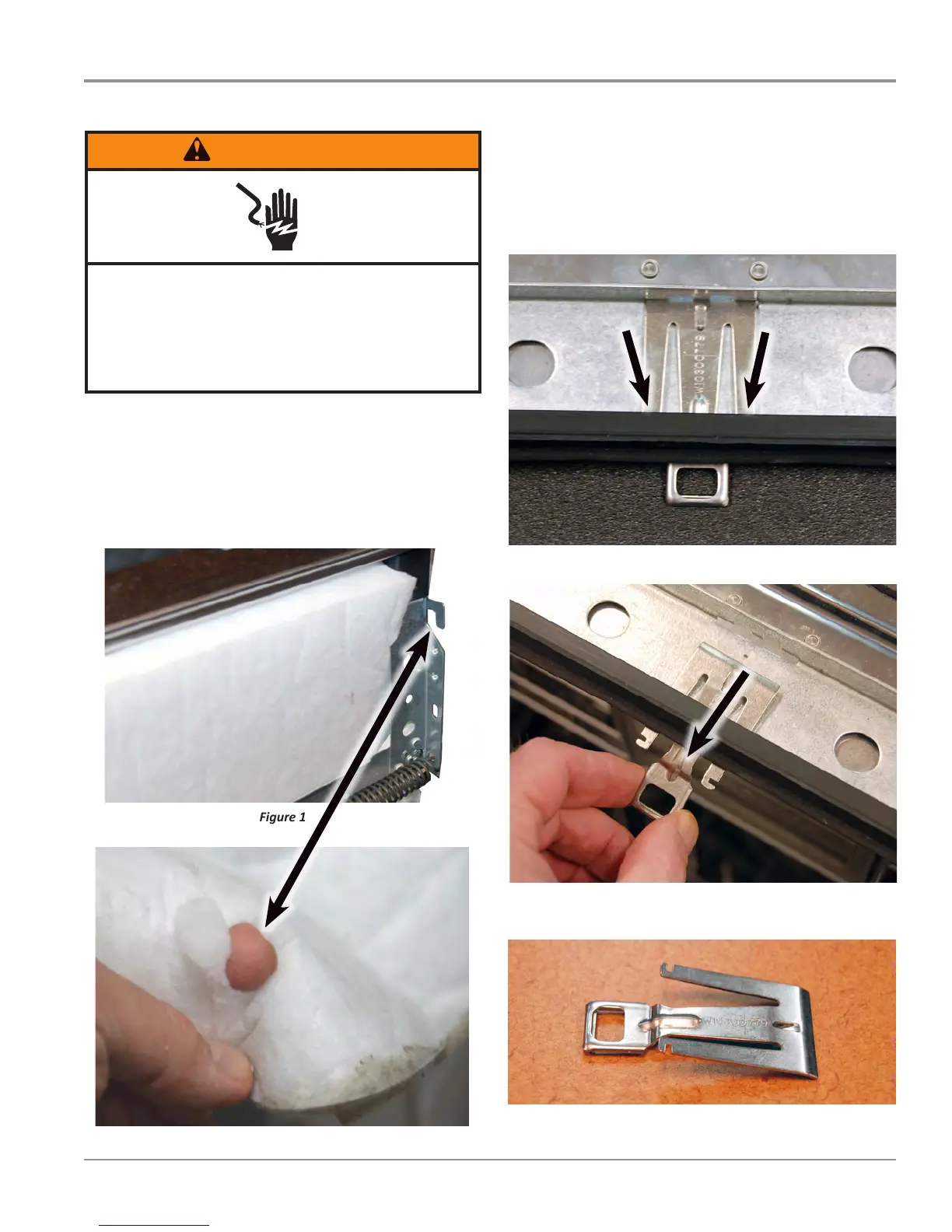

Insulation Blanket and Door Latch Strike
Installing Insulaon Blanket
(Stainless Steel Tub Models Only)
1. Fasten the blanket on the hooks located on each side of
the tub, (see Figures 1 and 2).
Figure 1
Figure 2
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Removing Door Latch Strike
1. Open the dishwasher door.
2. Depress the 2 outside bars and pull out the latch, (see
Figures 1, 2 and 3).
Figure 1
Figure 2
Figure 3

Maytag MDB series Specifications

General

Type	Built-In
Capacity	14 Place Settings
Tub Material	Stainless Steel
Energy Star Certified	Yes
Soil Sensor	Yes
Heated Dry	Yes
Control Type	Electronic
Delay Start	Yes
