COMPONENT ACCESS
Maytag Chopper Dishwashers
n
4-17

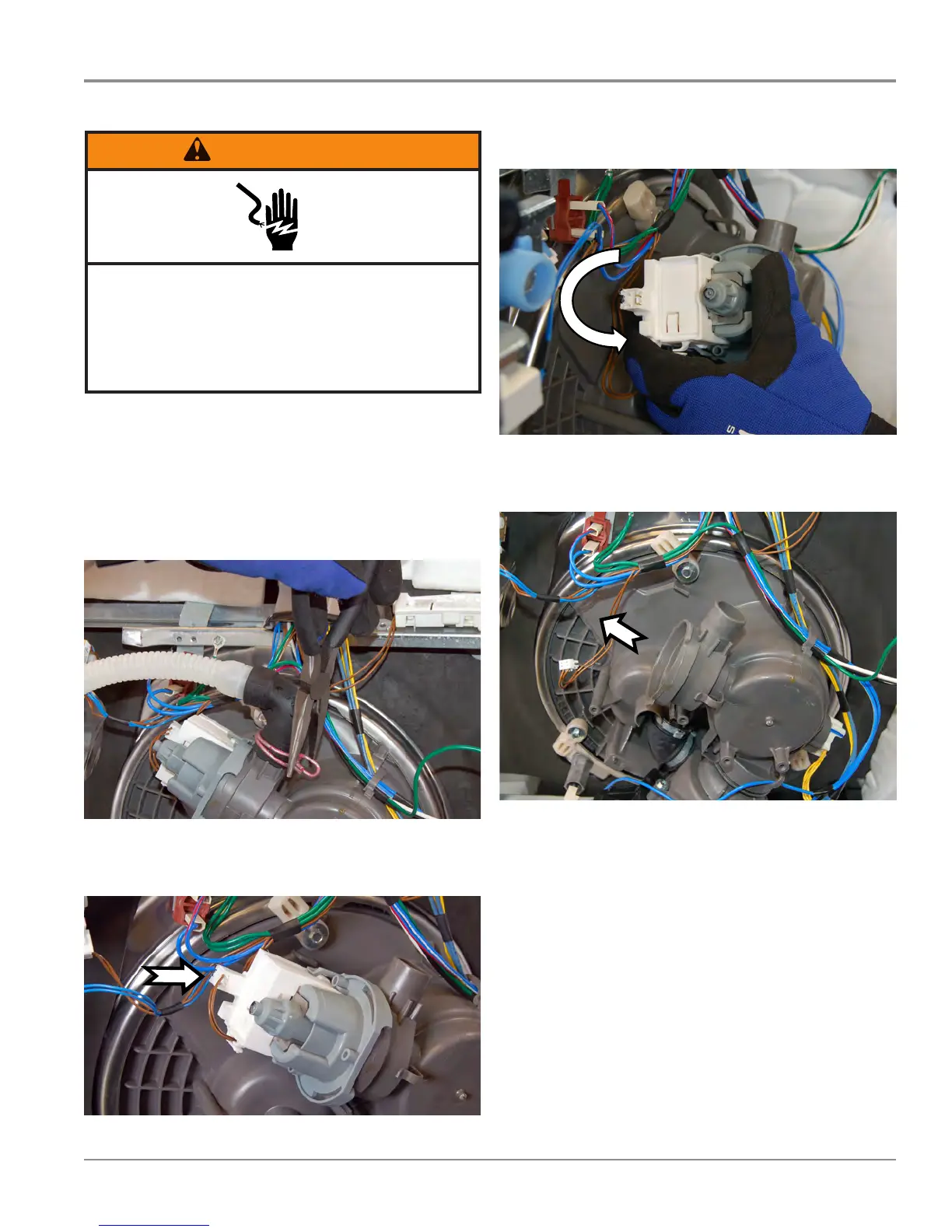

Remove Drain Pump
1. Unplug dishwasher or disconnect power.
2. Release hose clamp and pull o the hose, (see Figure 1).
NOTE: Be prepared to catch the water from the sump area.
Figure 1
3. Unplug the wire harness connected to the drain pump,
(see Figure 2).
Figure 2
Removing Drain Pump
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
4. Rotate the drain pump 1/4 turn counter clockwise, (see
Figure 3).
Figure 3
5. Remove the drain pump from sump assembly, (see Figure
4).
Figure 4
