Maytag Chopper Dishwashers
COMPONENT ACCESS
Overll Assembly Components
Figure 3

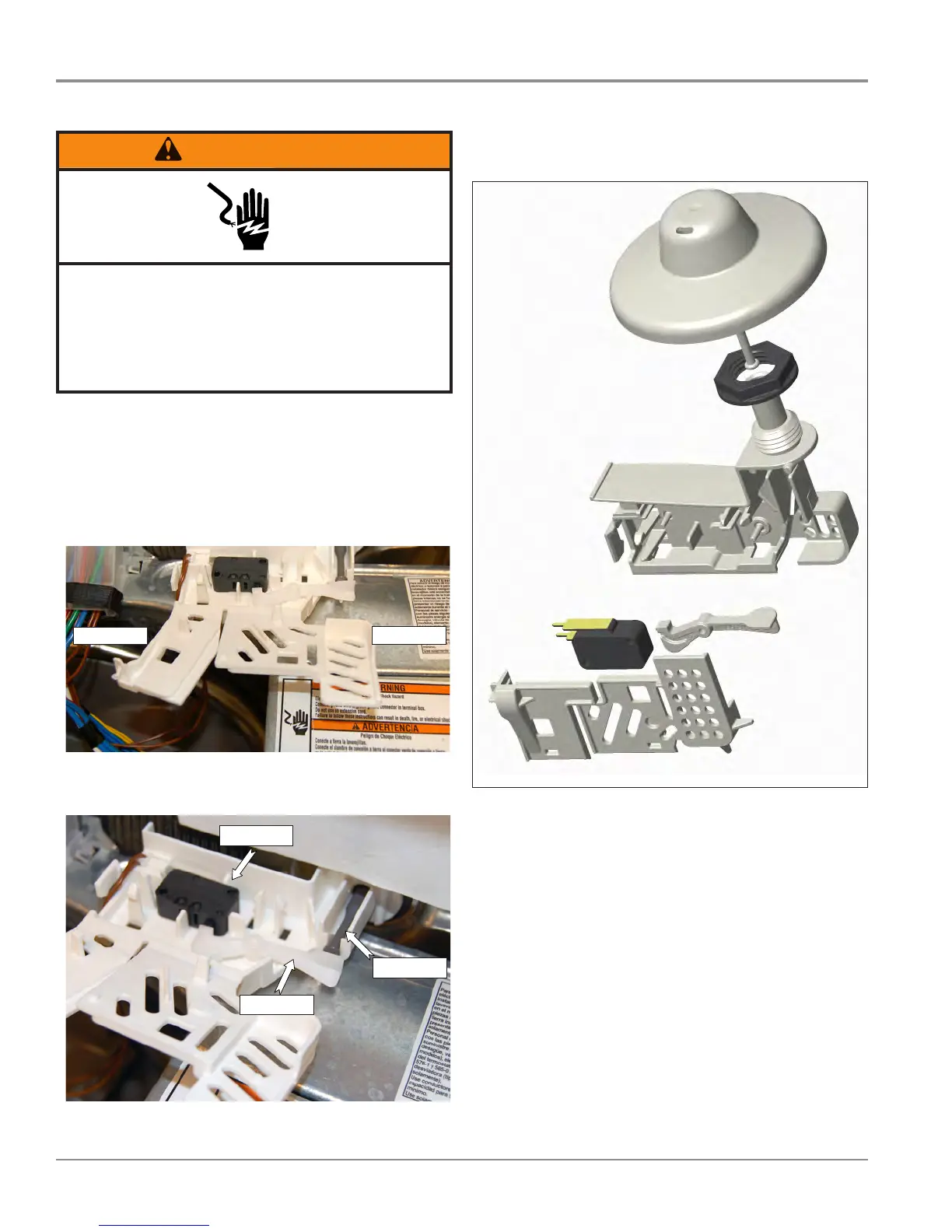

Overfill Assembly
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Float
Housing and standpipe
Switch
Switch Lever
Standpipe nut
Housing Panels
Accessing Overll Assembly
1. Unplug or disconnect power.
2. Open right and le side covers, (see Figure 1).
Left Cover
Right Cover
Figure 1
Locaon of oat switch components. See Figure 2.
Float Switch
Float Stem
Switch Lever
Figure 2

Maytag MDB series Specifications

General

Type	Built-In
Capacity	14 Place Settings
Tub Material	Stainless Steel
Energy Star Certified	Yes
Soil Sensor	Yes
Heated Dry	Yes
Control Type	Electronic
Delay Start	Yes
