Maytag Chopper Dishwashers
COMPONENT ACCESS

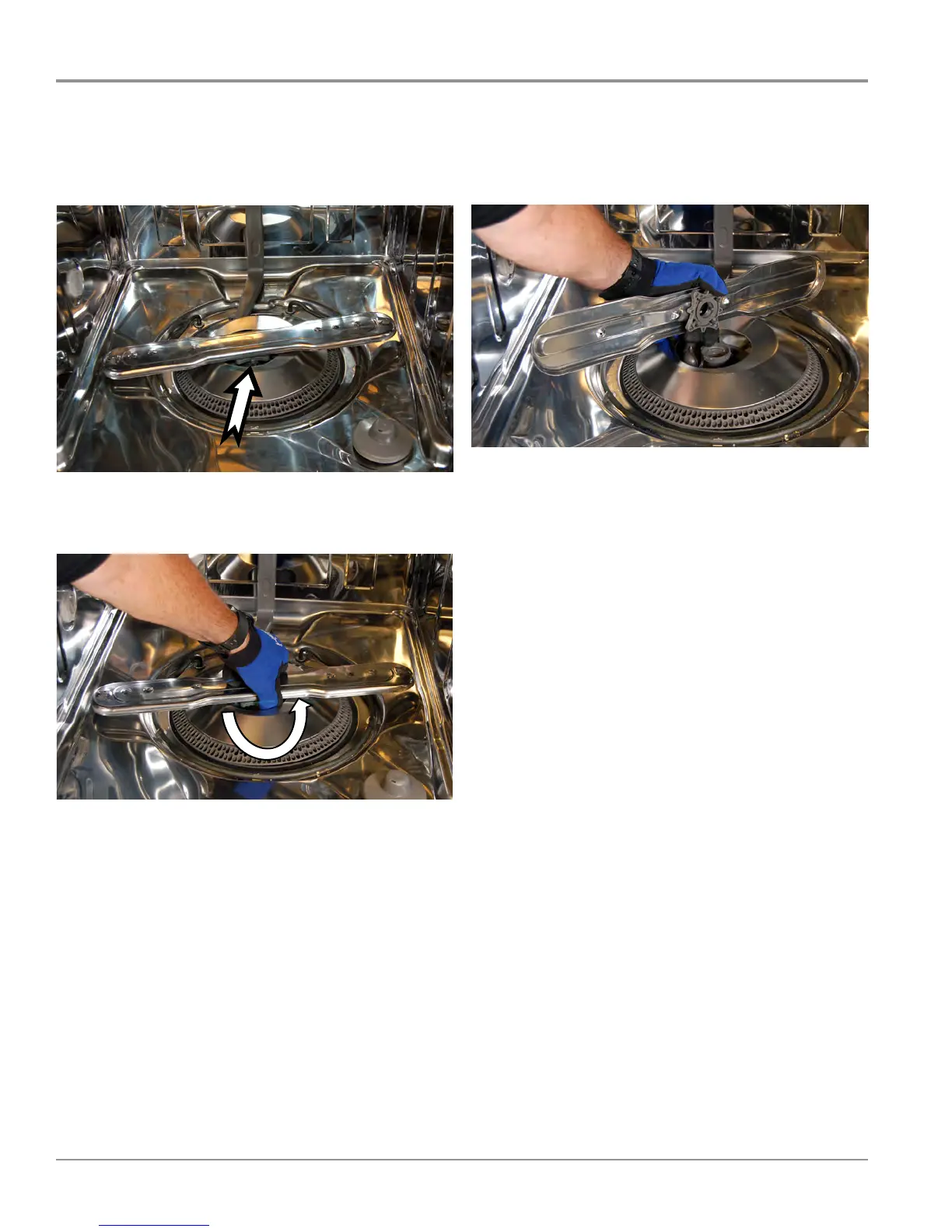

To remove the lower spray arm:
1. Lower spray arm nut locaon, (see Figure 1).
Figure 1
2. Rotate the lower spray arm nut ¼ turn counter clockwise
to remove the spray arm, (see Figure 2).
Figure 2
Removing Lower Spray Arm
3. Li o lower spray arm, (see Figure 3).
Figure 3
Lower Spray Arm Reinstallaon
1. Place spray arm on the diverter housing and slowly turn
spray arm unl it seats on diverter.
2. Grasp lower spray arm nut and turn 1/4” clockwise to
secure in place on diverter housing.
3. Run the Diagnosc Cycle to verify spray arm operaon.

Maytag MDB series Specifications

General

Type	Built-In
Capacity	14 Place Settings
Tub Material	Stainless Steel
Energy Star Certified	Yes
Soil Sensor	Yes
Heated Dry	Yes
Control Type	Electronic
Delay Start	Yes
