COMPONENT ACCESS
Maytag Chopper Dishwashers
n
4-19
Removing the Sump Assembly
Preparation:
Remove the following items from inside the dishwasher (see
Figure 1 below):
1. Lower Rack
2. Lower Spray Arm
3. Accumulator Cover
4. Disconnect Feed Tube from Sump
5. Accumulator/Screen Assembly
6. Remove Chopper Protector
Removing the Sump Assembly
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.

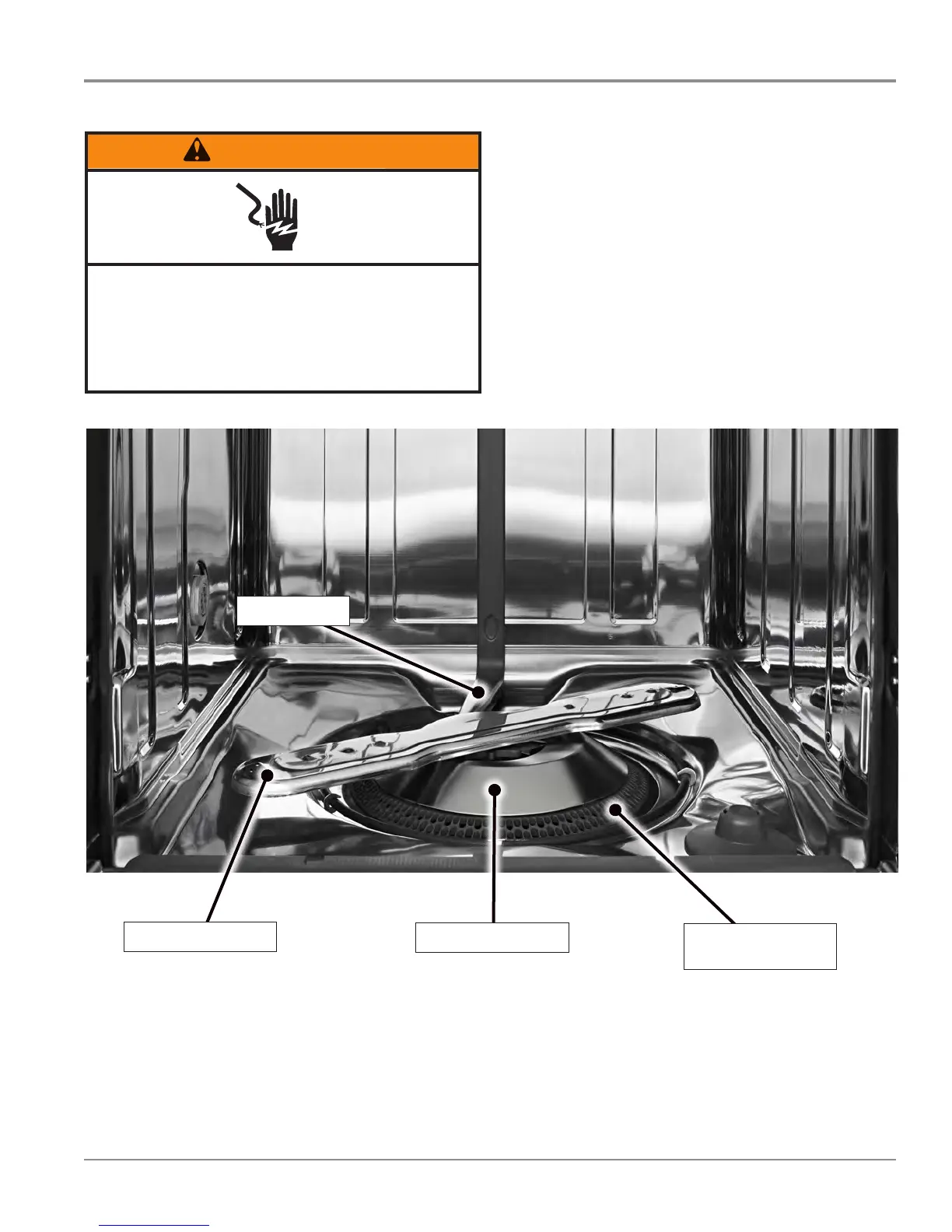

Figure 1
Lower Spray Arm
Accumulator/Screen
Assembly
Accumulator Cover
Feed Tube
Connued on next page . . .
