Maytag Chopper Dishwashers
COMPONENT ACCESS
Removing the Sump Assembly (continued)

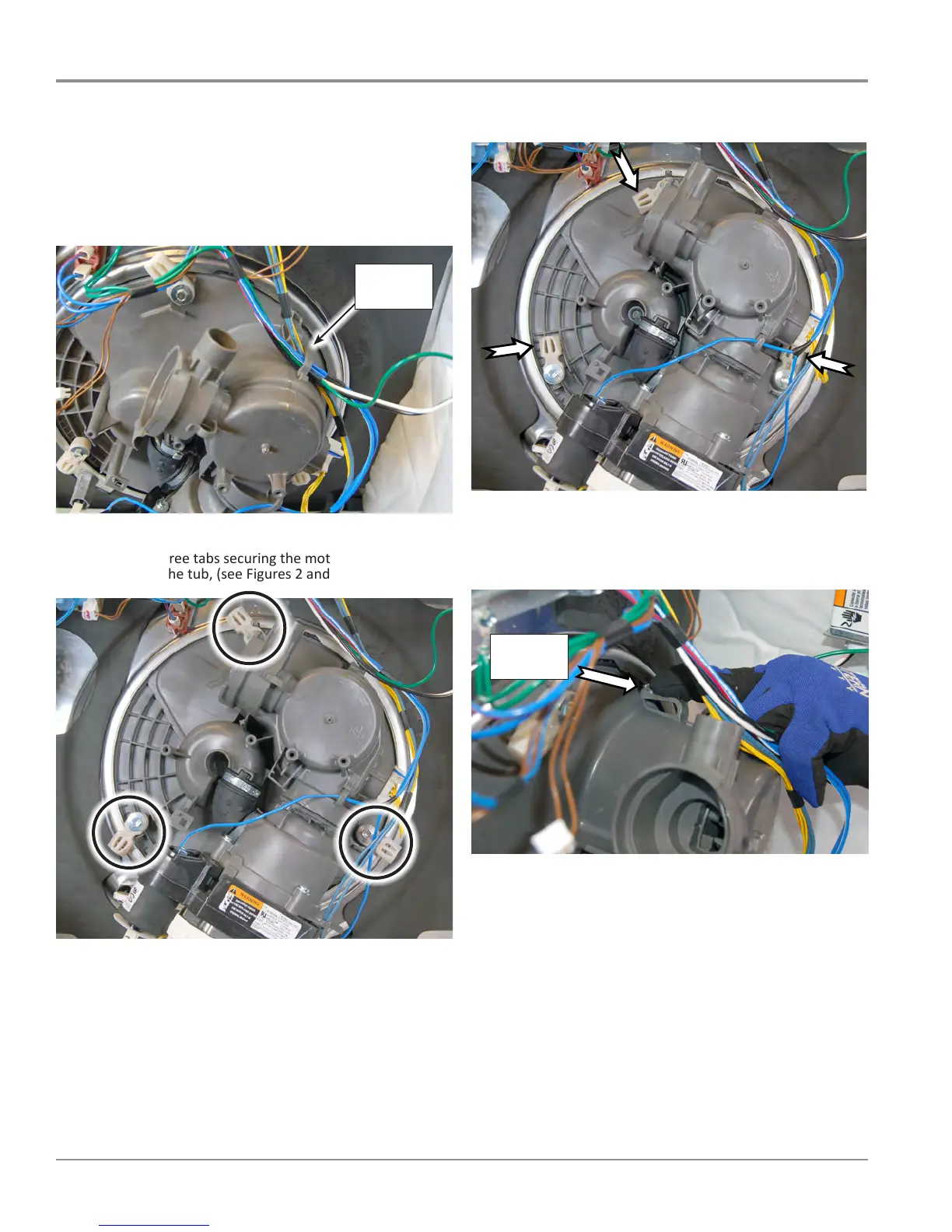

Figure 3 - Unlocked
5. Depress sump release tab located in front of sump. Push
upward on sump, from the boom, to detach from tub.
See Figure 4.
Depress
Tab
Figure 4
Sump Removal:
1. Unplug dishwasher or disconnect power.
2. Perform the procedures on page 4-17, “Remove Drain
Pump” prior to performing the following steps.
3. Remove the wire harness from the bracket on the side of
the sump and move o to the side, (see Figure 1).
Harness
Clip
Figure 1
4. Unlock the three tabs securing the motor and sump
assembly to the tub, (see Figures 2 and 3).
Figure 2 - Locked
