COMPONENT ACCESS
Maytag Chopper Dishwashers
n
4-9
Advanced Power Dry™ (Side Dry)
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.

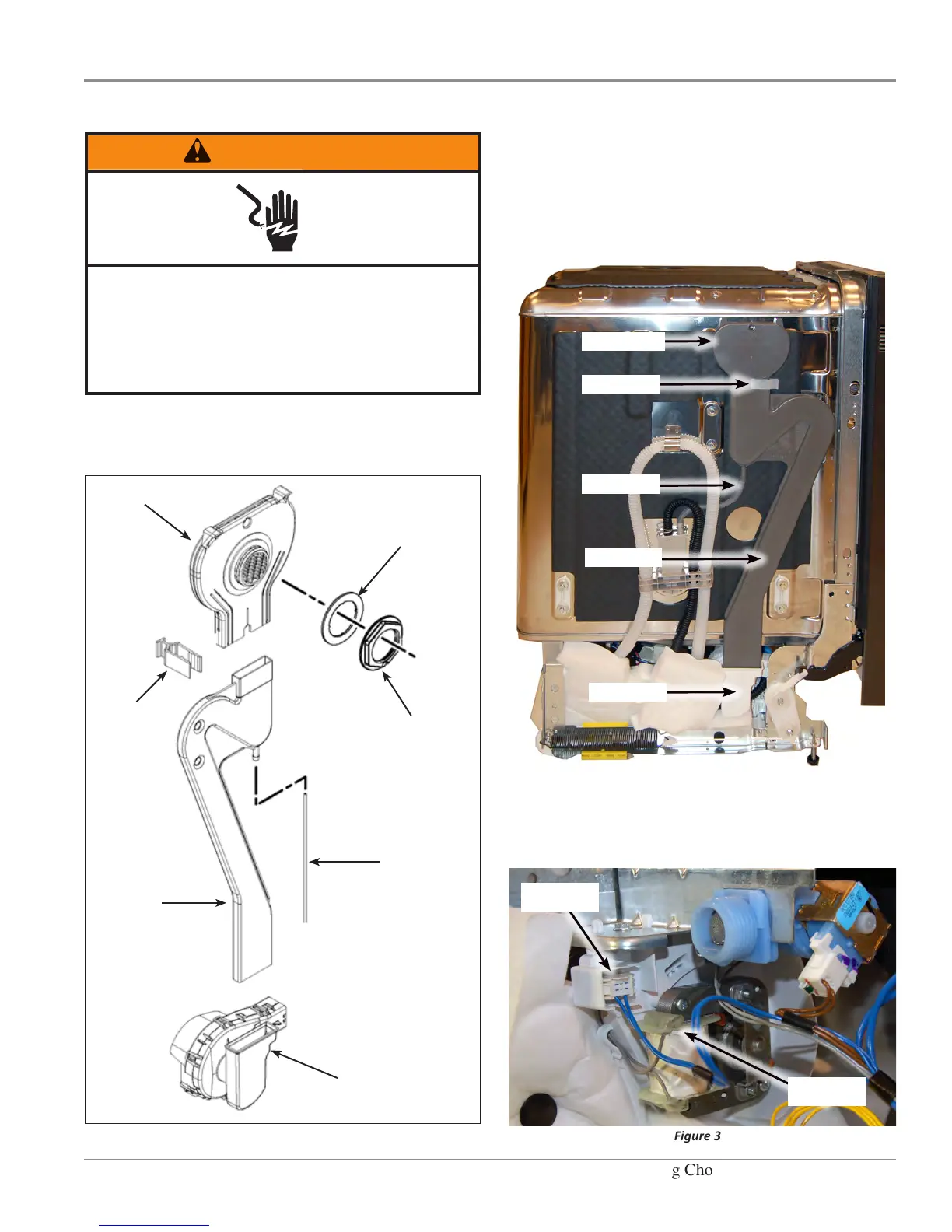

Advanced Power Dry™ Components
Advanced Power Dry™ Components
1. Unplug dishwasher or disconnect power.
2. Access Power Dry™ components on le side of tub (see
Figure 2). To disassemble Power Dry™ components;
unscrew air assembly nut from inside tub, disconnect vent
hose, then slide exhaust tube and air outlet assembly up
and out of blower assembly to remove.
Figure 2
3. From underneath the tub, disconnect the harness and remove
the blower vent from the Blower Assembly (see Figure 3).
4. Remove the two (2) 1/4” screws securing Blower Assembly
to dishwasher and remove assembly (see Figure 3).
Figure 3
Figure 1
Air Outlet Ass’y
Rubber Seal
Air Assembly Nut
Retainer Clip
Exhaust Tube
Vent Hose
Blower Ass’y
Air Outlet Ass’y
Retainer Clip
Vent Hose
Blower Ass’y
Exhaust Tube
Blower
Connector
Blower
Assembly
