Maytag Chopper Dishwashers

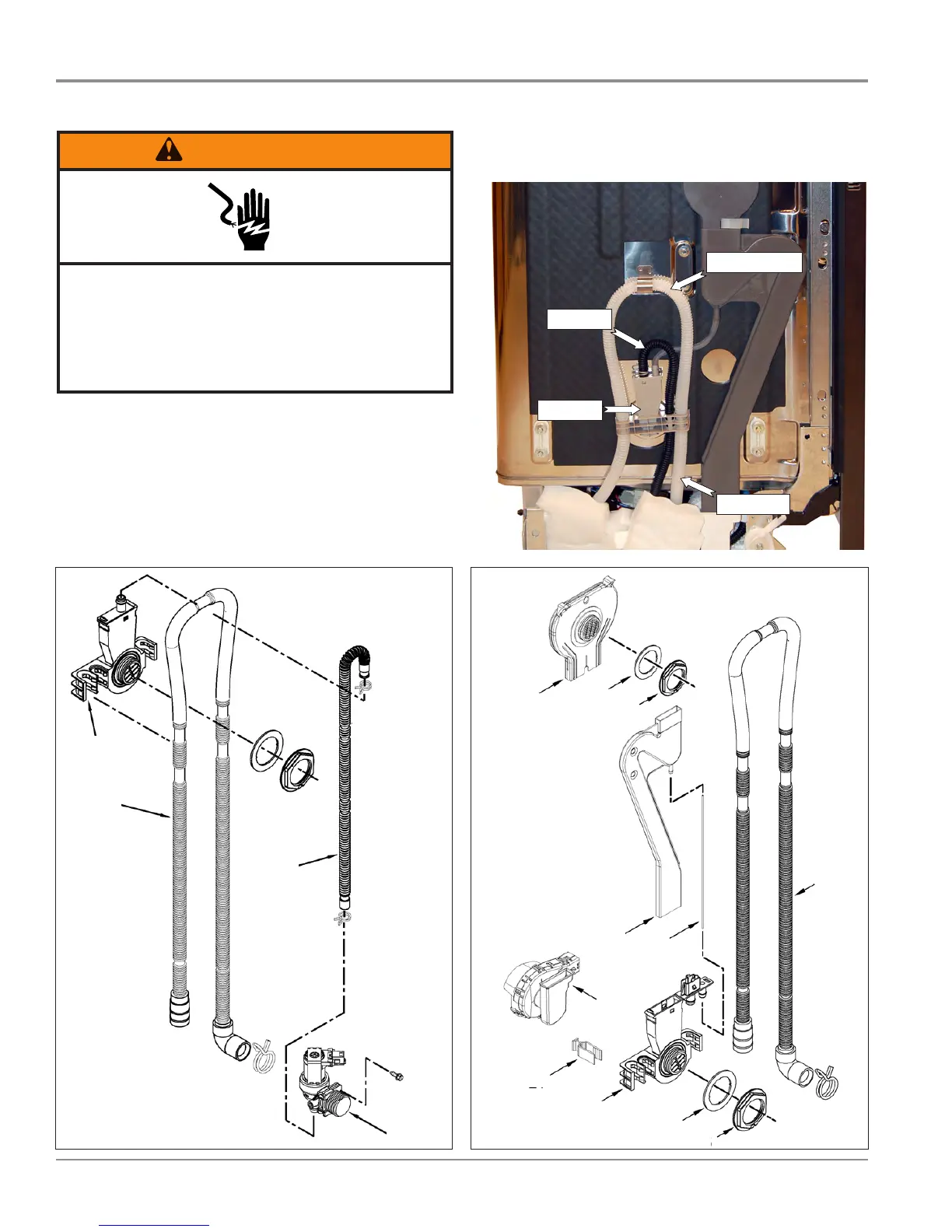

COMPONENT ACCESS
Water Fill & Drain Components
(Some Models)
Drain loop must be higher than drain to prevent siphoning. The
ll valve and ll hose shown below is the same for Figure 3.
Water Fill & Drain Components
(Some Models)
Removing Water Fill and Drain Components
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Inlet Hose
Water Inlet
Drain Hose Loop
Drain Hose
Figure 2
Water
Inlet
Inlet Valve
Drain
Hose
Gasket
Nut
Inlet
Hose
Figure 3
Nut
Gasket
Gasket
Nut
Water
Inlet
Drain
Hose
Exhaust
Tube
Blower
Ass’y
Clip
Retainer
Air Ass’y
Outlet
Vent
Hose
Figure 1
