Maytag Chopper Dishwashers

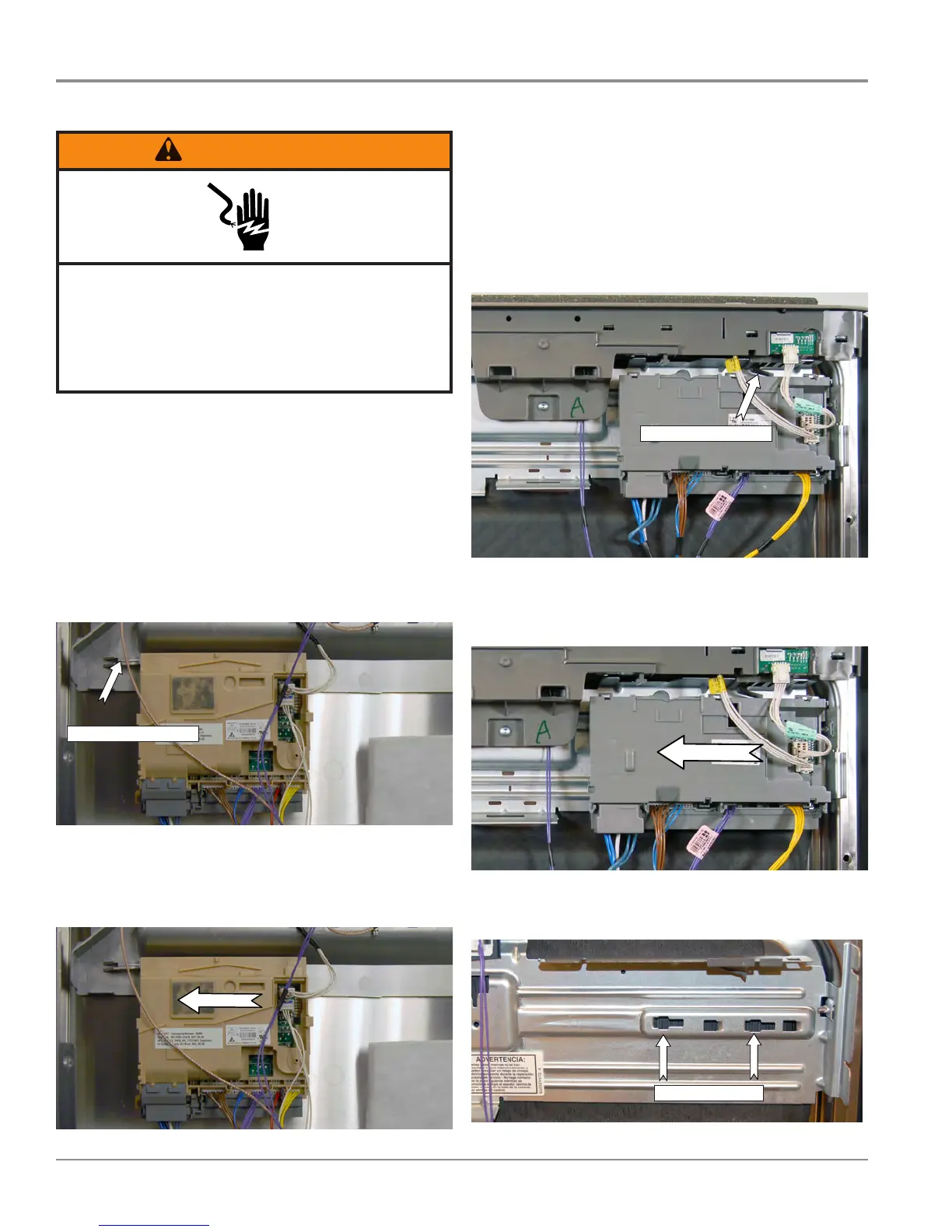

COMPONENT ACCESS
Removing the Control
(Earlier Models)
1. Unplug dishwasher or disconnect power.
2. Perform the procedures on page 4-4, “Remove Outer Door
Panel” prior to performing the following steps.
3. Disconnect harnesses from control board.
4. Depress the locking tab, see Figure 3
Li up Locking Tab
Figure 3 - Lift up Locking Tab
4. Slide the electronic control to the le to unhook the tabs
on the back of the control from the slots in the door
bracket, see Figure 4.
Figure 4 - Slide Control to Left
5. There are two tabs on the back of the control that hook
into the slots in the door bracket. See Figure 5.
Tab Slots
Figure 5 - Control Tab Slots
Removing the Control
(Later Models)
1. Unplug dishwasher or disconnect power.
2. Perform the procedures on page 4-4, “Remove Outer Door
Panel” prior to performing the following steps.
3. Disconnect harnesses from control board.
4. Depress the locking tab, see Figure 1
Depress Locking Tab
Figure 1 - Depress Locking Tab
4. Slide the electronic control to the le to unhook the tabs
on the back of the control from the slots in the door
bracket, see Figure 2.
Figure 2 - Slide Control to Left
Removing Electronic Control Board
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.

Maytag MDB series Specifications

General

Type	Built-In
Capacity	14 Place Settings
Tub Material	Stainless Steel
Energy Star Certified	Yes
Soil Sensor	Yes
Heated Dry	Yes
Control Type	Electronic
Delay Start	Yes
