1-4
n
Maytag Chopper Dishwashers
GENERAL INFORMATION
New Components

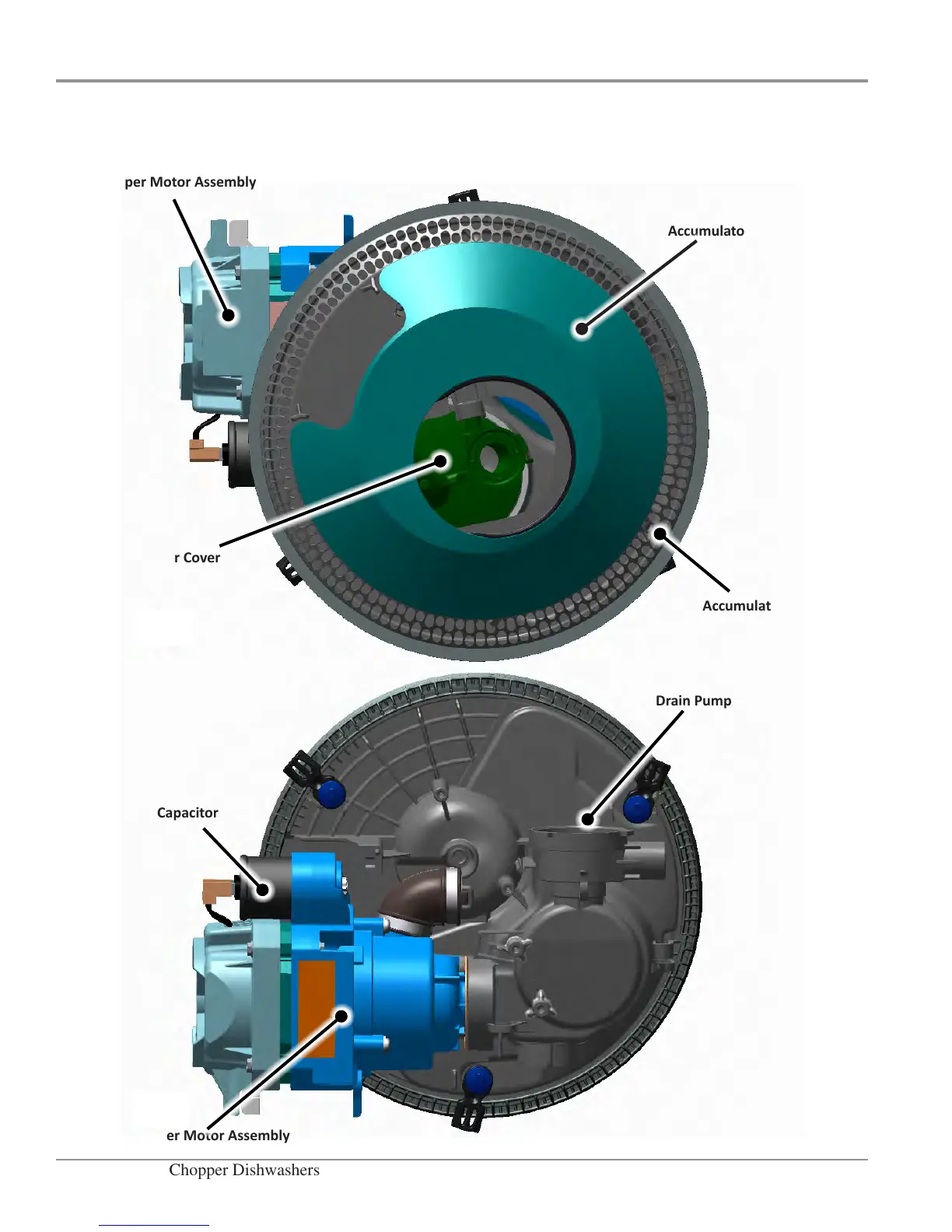

Chopper Sump Assembly Top & Boom Views
Accumulator Cover
Accumulator Screen Ass’y
Diverter Cover
Chopper Motor Assembly
Drain Pump Port
Motor Capacitor
Chopper Motor Assembly
Figure 2 - Chopper Sump Assembly - Top
Figure 3 - Chopper Sump Assembly - Bottom
