COMPONENT ACCESS
Maytag Chopper Dishwashers
n
4-21

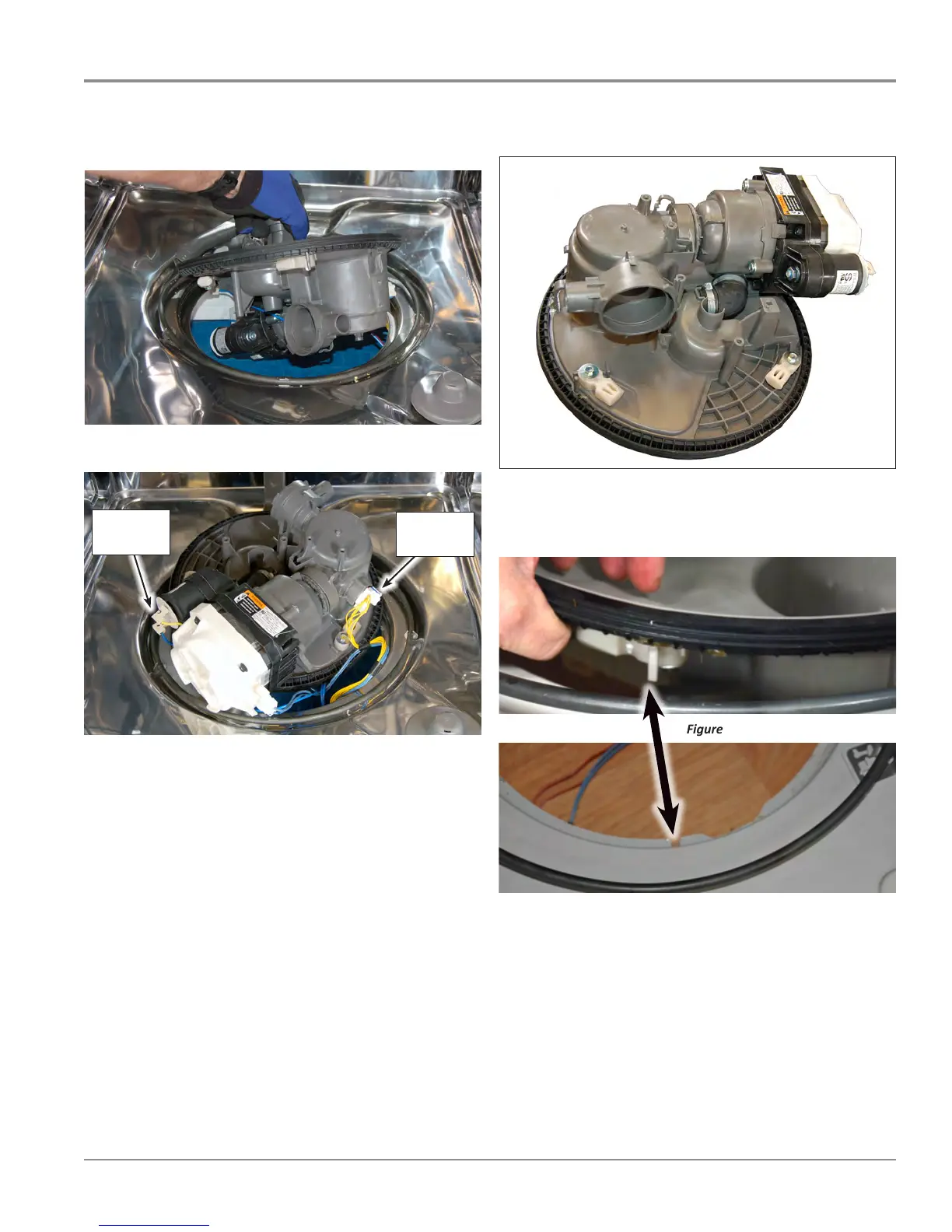

6. From inside the tub, lt the sump assembly and li out far
enough to ip sump over. See Figures 5 and 6.
Figure 5
Motor
Harness
OWI
Harness
Figure 6
7. With the sump assembly ipped over inside the tub,
disconnect the following harness:
Refer to Figure 6 above for harness locaons:
n Wash Motor Harness
n OWI Harness (or remove OWI from sump)
Removing the Sump Assembly (continued)
8. Remove sump assembly from dishwasher (see Figure 7).
Figure 7 - Sump Assembly
NOTE: When reinstalling the sump assembly, align the tab on
the assembly with the slot in the tub. See Figures 8 and 9.
Figure 8
Figure 9

Maytag MDB series Specifications

General

Type	Built-In
Capacity	14 Place Settings
Tub Material	Stainless Steel
Energy Star Certified	Yes
Soil Sensor	Yes
Heated Dry	Yes
Control Type	Electronic
Delay Start	Yes
