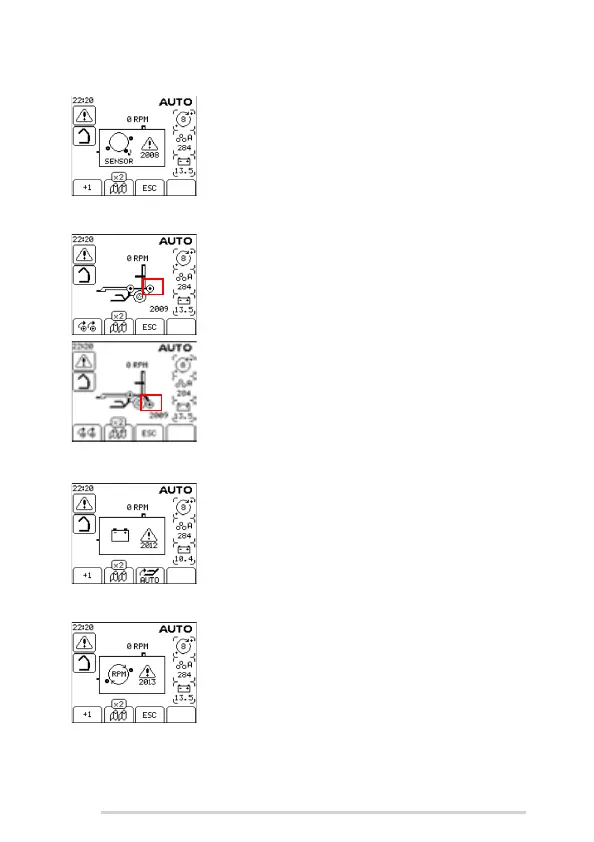

Motor speed sensor
If the control box does not receive a speed signal from the
ring motor, when the ring is rotating, then a motor speed
sensor warning is displayed.
(2008)
Tip arm position
If you attempt to load or start wrapping when the tip arm is
down then a warning will appear on screen. The tip arm will
flash up and down to tell the operator to raise the tip arm.
(2009)
Low voltage
If the voltage drops below 10.5 volts, then this warning will
be displayed. The usual causes are nearly always either an
inadequate power lead cable or corroded connections.
Ensure the cable connection to the 12 V socket is of good
quality. Check the tractor power supply.
(2012)
Wrapper too fast
If the ring rotates too fast a warning will be displayed. During
normal operation the ring will rotate at up to 40 rpm.
(2013)
