McHale Orbital Round Bale Wrapper
55

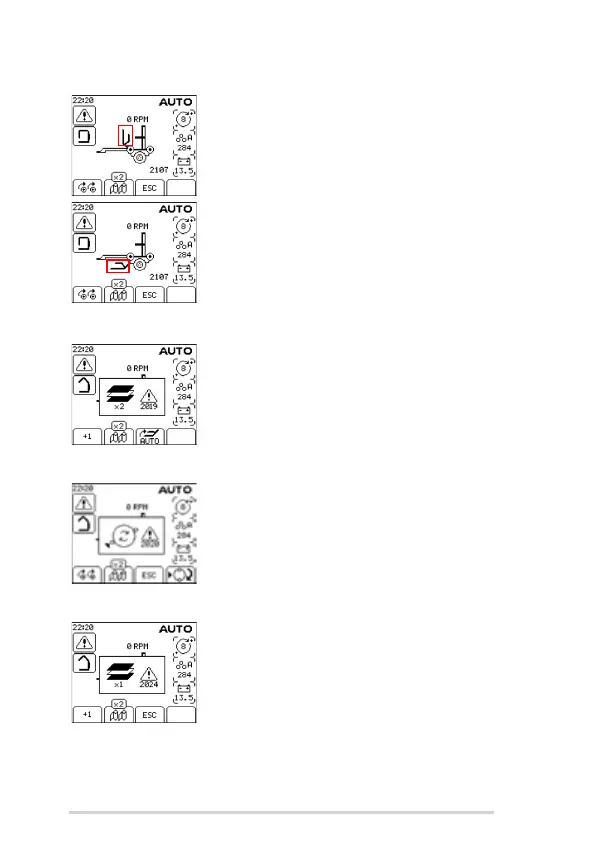

Load arm position
If you attempt to start wrapping and the load arm is up then
a warning will appear on screen. The load arm will flash up
and down to tell the operator to lower the load arm.
(2017)
Out of dispenser film
When both dispenser film rolls are empty, this warning is
shown on the display and the dispenser rotates slowly to the
loading position where the first dispenser roll is replaced.
(See ‘Loading dispenser film’)
(2019)
Index warning
Press the button on side of machine or soft key D to index
the wrapping ring or to change the second roll of film. A
warning appears on screen when ring is rotating. Press
ESC to cancel.
(2020)
1 dispenser film only
When the dispenser film sensor is switched on, failure of
one dispenser to feed film will flash this warning on the
display and the wrapping rollers will operate in 50/50 mode
giving a correct wrap with the remaining film roll. Press ESC
to silence the alarm.
(2024)
