McHale Orbital Round Bale Wrapper
56

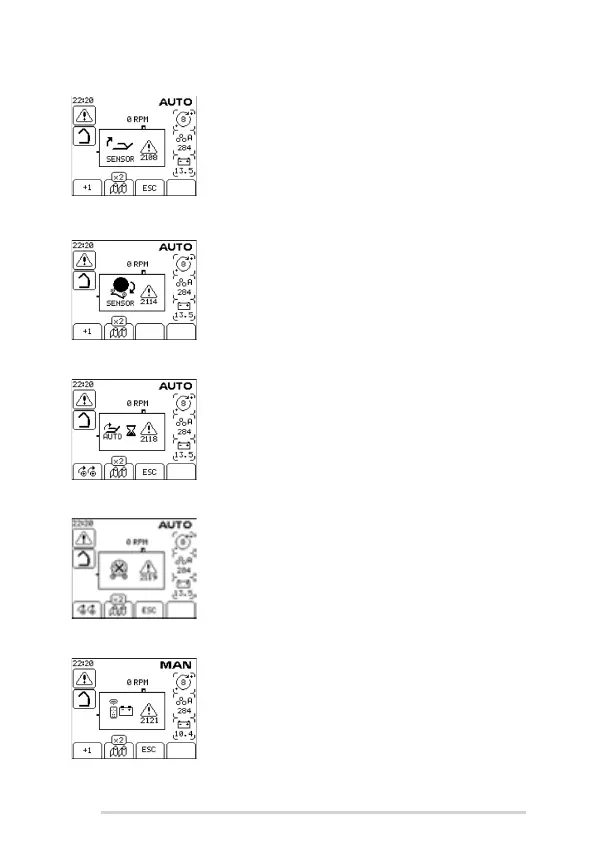

Load arm position sensor
If the load arm position sensor gets disconnected or is reading
a voltage below an acceptable range, then a warning is
displayed. The AUTO LOAD button and the bale sensor will be
disabled. The operator can only load the bale using the
manual buttons. CAUTION: In this scenario there are no
software interlocks for the load arm, so it is possible to damage
the machine. Proceed with caution when using the load arm.
(2108)
Tip arm position sensor
If the tip arm position sensor gets disconnected or is reading
a voltage below an acceptable range, then a warning is
displayed. Most functions will be disabled to prevent
damage to the machine.
(2114)
Auto load sensor timed out
This warning will be shown if the bale is not detected at the
bale sensor paddle within the required time. The bale
sensor will automatically switch off.
(2118)
Bale transfer incomplete
Loading will stop and this warning will be shown if the bale
does not transfer from the load arm to the wrapper rollers
i.e. if the bale sensor paddle does not open after attempting
to load a bale.
(2119)
Radio remote low voltage
Displayed if low battery is detected in the radio remote
transmitter. Control unit automatically switches to manual
mode for safety.
(2121)
